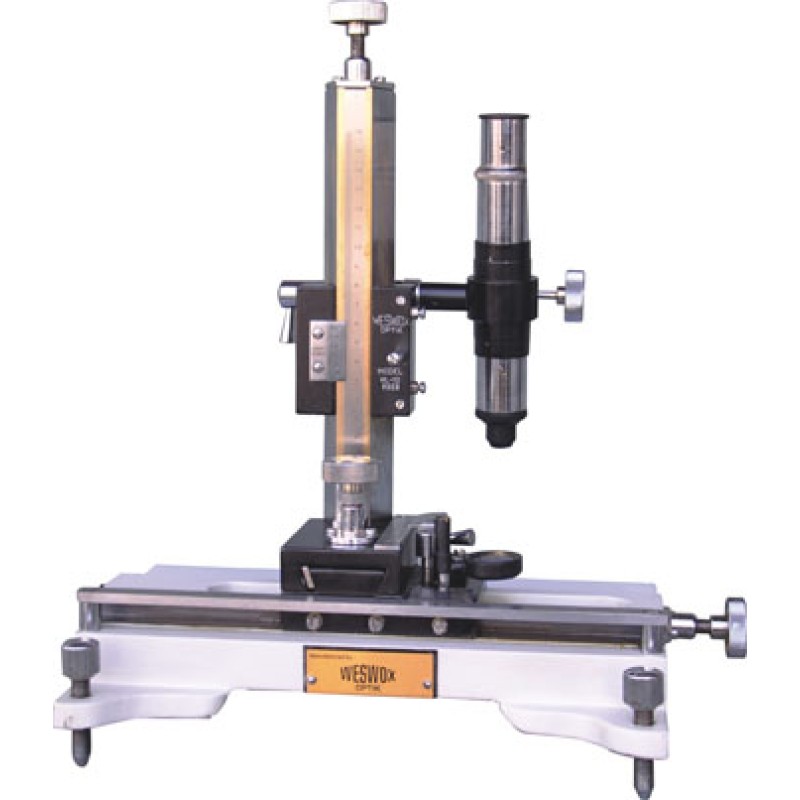

Vernier Microscopes HL-10

Three Motion Vernier Microscope

 "Designed to give Maximum Accuracy."

Lifelong Stainless Steel Scales & Verniers, calibrated on IMPORTED machine, Accuracy of +.001%.

Its precisely engineered mechanical features and best quality optical components assure overall superiority in performance required in Degree & Intermediate Science Classes and in Technical Laboratories.

Hard instrumental chromium plating will accent any classroom environment.

Specifications:

  • T Shape model with horizontal and vertical scale fitted on cast iron base with three leveling screws and accurately machined. The horizontal carriage is machined and interground on the guide ways of horizontal bed. The carriage is fitted with vertical. Brass pillar carrying a microscope tube on a ground fitted vertical carriage.
  • Precision lapped vertical and horizontal carriages with fine movements free from lateral shift or chattering provided with slow motions. Horizontal 20cms and vertical 16 cms scales which travels approx. 3 cms in one traverse.
  • Verniers both reading to 0.01mm read by magnifiers.
  • Wider object platform provided with a milky white perspex sheet.
  • Special rust proof best quality stainless steel scales finely graduated.
  • Traverse slide of 6cms. long provided with rack and pinion system for cross wise movements consisting of 10x Ramsden eyepiece with fine glass graticule and 2" or 3" focal length Achromatic Objective made from highest quality optical glass.
  • The instrument is furnished in epoxy finish with bright chrome plated parts, packed in a packed in a Styrofoam molded box inside plywood cabinet with dust cover.
