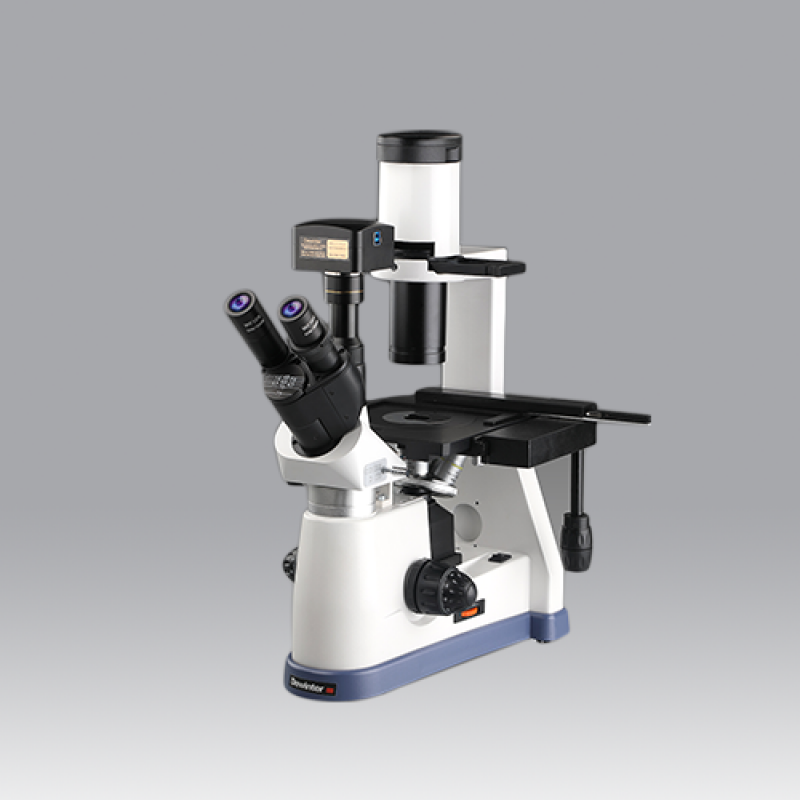

Inverted Tissue Culture Microscope Model: Victory
Product Details :
Brand | Dewinter |
Usage/Application | Research |
Model Name/Number | Victory |
Power Supply | 220-240 V |
Eyepiece | 10X (Paired) FOV 18mm |
Working Distance | 45 mm |
Inter-Pupillary Distance | 48mm to 75mm |
Trinocular Observation Head
- Siedentopf Observation head inclined at 45??.
- Diopter adjustment ring on ocular tube.
- Inter-pupillary distance from 48mm to 75mm.
EyepieceEyepieces
- EWF 10X (Paired) FOV 18mm.
Objectives (Anti fungus coated)
- LWD Plan 4X
- LWD Plan phase 10X
- LWD Plan phase 20X PH
- LWD Plan 40X
Mechanical Body
- Quadruple nosepiece.
- PRE-FOCUSSING LEVER & TENSION ADJUSTMENT RING are on focusing mechanism.
- Hard coated mechanical stage is 180mmX165mm.Movement 50mmX40mm.
Illuminator
- 12V/20W Halogen lamp with spherical collector lens, continuous regulation of the illumination .
Condenser
- Long working distance 45mm.Condenser with N.A. 0.35. Field diaphragm, Pull out filter socket.
Filter
- Blue, Green, Yellow Glass Filter.
Standard Accessories
- Electric Cable, Fuse, Vinyle dust cover, Operating Manual, 12V/20W Halogen bulb, STYRO FOAM molded pack .
