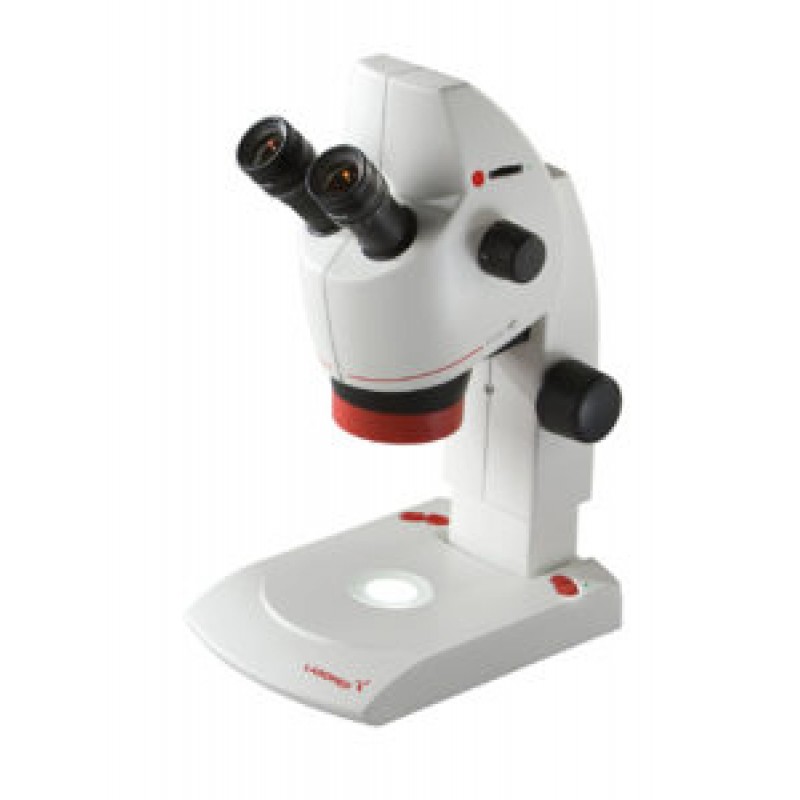

Labomed Luxeo 4D
Product Details:
The Luxeo 4D reflects high performance engineering in every feature. With a bright white LED illumination system, superb optics, single-cast durable construction, and a 5 megapixel high-definition built-in camera, virtually all educational documentation and routine quality control requirements are met with the Luxeo 4D stereo microscope.
Luxeo 4D Advantages:
- A +/- 30° LED ring light features oblique illumination settings, allowing users to reduce surface glare through light angle control. Bright LED transmitted illumination is also achieved with a 3-LED glow screen. Continuous intensity control is managed through a control dial on ring light.
- A built-in 5 megapixel camera offers high-definition 1080p live video feed (HDMI), digital interface through computer (USB 2.0) with PixelPro imaging software, and on-device SD card slot with capture button.
- High-precision plan optics and superior coatings ensure accurate color rendition, excellent depth of focus, and superior resolution. A range of focussable eyepieces ensure convenience and interchangeability.
Microscope Specification:
- Optical System - Greenough
- Magnification - 4.4:1 Zoom Ratio
- Eyepieces - Widefield 10x/18mm (interchangeable)
- Diopter Correction - + / - 5 dioptersViewing
- Body - Integrated Binocular, 45º, 52-74mm diopter adjustment
- Working Distance - 100 mm
- Magnification Range - 8x to 35x Continuous
- Object Field Diameter - 6.6 to 28.5 mm
- Eye Guards - Rubber, Retractable
- Illumination Control - Incident / Transmitted ("Oblique" Settings) / Combined
- illumination control buttons with rheostat dial for light intensity control
- Incident Light - + / - 30º Oblique illumination and variable intensity control dial
- Incident Light Method - Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)
- Transmitted Light - 3-LED super bright glow screen, low heat emission
- LED Specifications - Up to 25,000 hours, Homogenous daylight (6500ºK), free of UV and IR emmissions
- Digital Interface -5.0 Megapixel CMOS camera (1/2.5" sensor) with digital (USB 2.0), video (HDMI), and secure digital (SD) card interface with on-board capture button.
- Optical System - Greenough
- Magnification - 4.4:1 Zoom Ratio
- Eyepieces - Widefield 10x/18mm (interchangeable)
- Diopter Correction - + / - 5 dioptersViewing
- Body - Integrated Binocular, 45º, 52-74mm diopter adjustment
- Working Distance - 100 mm
- Magnification Range - 8x to 35x Continuous
- Object Field Diameter - 6.6 to 28.5 mm
- Eye Guards - Rubber, Retractable
- Illumination Control - Incident / Transmitted ("Oblique" Settings) / Combined
- illumination control buttons with rheostat dial for light intensity control
- Incident Light - + / - 30º Oblique illumination and variable intensity control dial
- Incident Light Method - Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs)
- Transmitted Light - 3-LED super bright glow screen, low heat emission
- LED Specifications - Up to 25,000 hours, Homogenous daylight (6500ºK), free of UV and IR emmissions
- Digital Interface -5.0 Megapixel CMOS camera (1/2.5" sensor) with digital (USB 2.0), video (HDMI), and secure digital (SD) card interface with on-board capture button.
- Power Supply - Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stablizer
