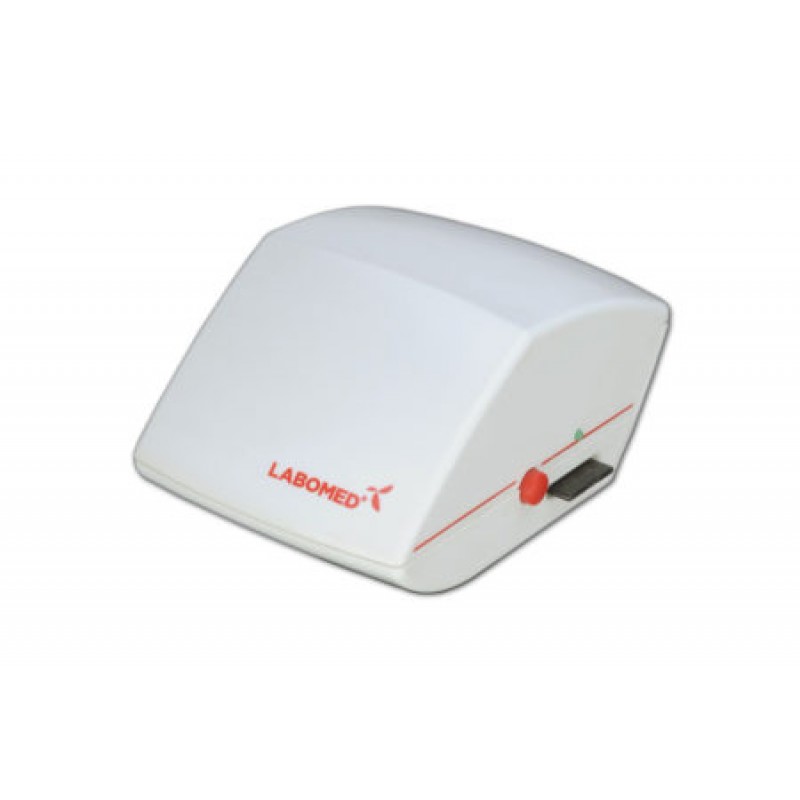

Labomed iVu 5100
Product Details:
iVu5100 DIGITAL CAMERA MODULE DIGITAL CAMERA MODULE 5.0 MEGA PIXEL
- The super resolution iVu 5100 is a 5 MP high-definition CMOS solution that boasts one of the fastest frame rates in its class, superb contrast, and unparalleled accuracy in color reproduction. This digital solution offers HD video streaming, digital, and an SD card interface in one highly affordable package. Total vertical integration of our camera means better image quality, easy to navigate software, and better end-to-end software and driver support.
- 5 MP image resolution with 30 frames per second(fps), vivid color reproduction and high-fidelity in image contrast. Digital interface through USB 2.0 makes this system easy to integrate.
- PixelPro Image Capture Software makes still and video capture simple. A modern, intuitive user interface allows users to quickly identify control functions, as well as archive and annotate images with ease
Technical Specifications iVu5100 DIGITAL CAMERA MODULE 5.0 MEGA PIXEL
Camera
Sensor | 1/2.5" 5.0 MP Color CMOS |
Active area | 5.70mm x 4.28mm |
Sensor resolution | 2592 x 1944 pixels |
Pixel Size | 2.2µm x 2.2µm |
A/D conversion | 12 Bit RGB |
Pixel clock | 48 MHz |
Dynamic range | 68 dB (measured at 10 ms exposure) |
Max. exposure | 3 seconds (Automatic Exp, WB, BL) |
Frame rate (image size) | 30 fps (1080p) |
Image resolution | 2592 x 1944 / 1280 x 720 |
Interface | USB 2.0, HDMI, Secure Digital (SD) Card |
Optical connection | C- Mount |
Voltage supply | 5V/ 2 Amp (via USB 2.0 connector, optional external power adapter) |
Power consumption | Approx. 1.8W |
Power indication | Green LED indicating power on and ready for capture |
SD Card Slot | Accepts SD and SDHC (High Capacity) cards |
Ambient conditions | Temperature: -30˚C… +70˚C Humidity: 5%... 80%, not condensing |
Dimensions (LxWxH) | 145mm x 93mm x 123mm |
Weight | 600g |
Computer Requirements | PC: Microsoft Windows XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM, USB 2.0 |
