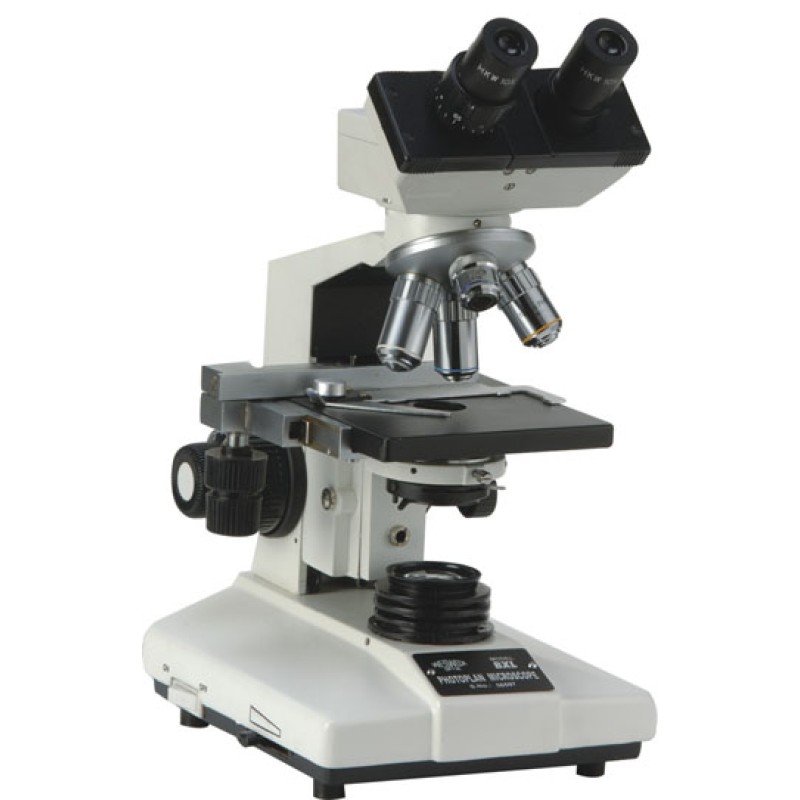

Advance Research Microscope
Most professional microscope for advanced analytical and research work.
Stable and sturdy base with built-in circuitary for illuminatore.High intensity HALOGEN LAMP for KOHLERS ILLUMINATION.PLAN ACHROMATIC Objectives for true color and contrast.
Specifications:
Warranty Information 2 Years parts.
3 years KEOWA optics.
1 year Electronics
Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability | |||
Observation Head | BINOCULAR head inclined at 45o and rotatable in 360o lockable at any angle. Both eyepiece tubes focusable to match objectives tube length. Interpupillary distance adjustments provided | |||
Eyepiece | Lockable, anti-fungal KEOWA Extra Wide Field HKW 10x/FOV 18mm (PAIRED) A.R. coated eyepiece with high eyepoint and foldable eyeguards. H6x (PAIRED) eyepiece extra. | |||
Nosepiece | Quadruple/Quintuple ball bearing nosepiece with POSITIVE click stop & rubber grip | |||
Objectives | KEOWA DIN size anti-fungal RMS Plan Achromatic objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65(SL) and 100x/NA 1.25(SL) Oil imm. | |||
Stage | Double Plated Rectangular stage( Ball Bearing Type) of size 120x140mm having low positioned co-axial controls. Both X & Y axis having graduated scale & verniers reading to 0.1mm. | |||
Focusing | Co-axial fine & coarse focusing control with ball bearing guideways based on four stage gear reduction system, free from any back lash & large knobs provide a soft & sophisticated touch to the microscope. | |||
Condenser | Focusable Abbe two lens type condenser NA 1.25 fitted with iris diaphragm and swing out filter holder with blue filter moving up and down through rack and pinion mechanism. | |||
Illumination | Built-in Base illumination with 6V-20W halogen lamp & intensity controlled power supply | |||
Packaging contents | Packed in shockproof Styrofoam molded box or in a plywood cabinet having provision for placing eyepieces, objectives Nylon Dust cover Detachable power cord and 3-pin plug. |
Accessories (optional) | Dark field and phase contrast kits |
Tension Control Ring | Enable you to adjust tension on coarse focusing knobs. |
