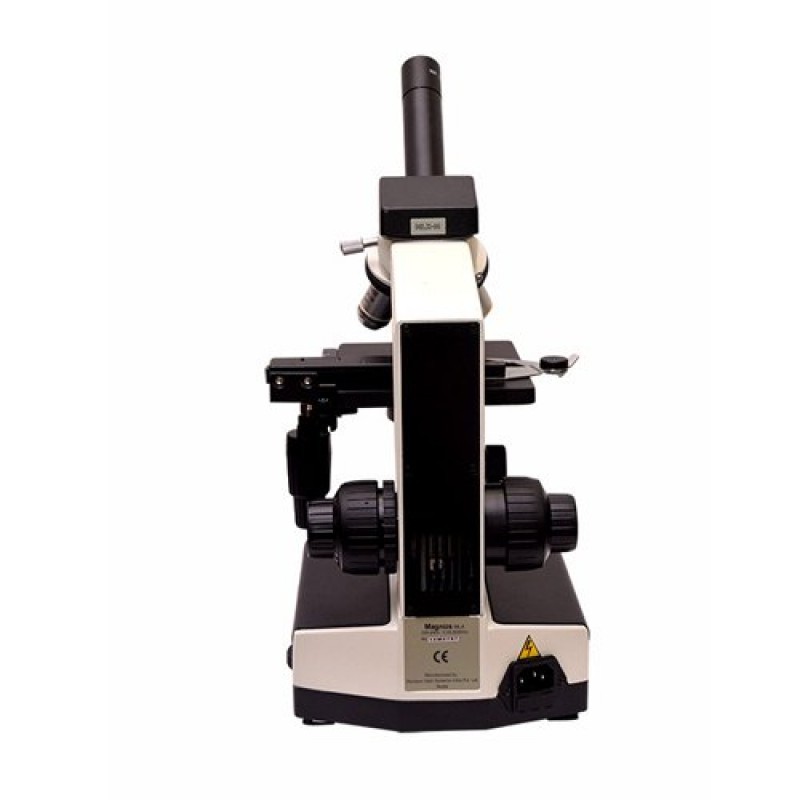

Magnus Monocular Microscope MLX-M Plus
Product Details:
| Minimum Order Quantity | 1 Piece |
| Light Source | Halogen |
| Magnification | 1000x |
| Model Number/Name | MLX-M |
| Features | Coaxial Coarse & Fine |
| Mechanical Stage | Co-axial low drive mechanical Stage (125mmx145mm) with traverse area of 50mmx76mm |
| Eyepiece | 10x WF |
| Illumination | 6V15W |
| Lens Type | Achromatic |
| Warranty | 1 year |
| Head Type | Monocular |
| Brand | Magnus |
| Condition | New |
| Condenser Holder | Rack & pinion mounted condenser holder |
| Focusing System | Co-axial coarse & fine focusing control with a focus adjustment and find adjustment knobs |
| Noise Piece | Quadruple noise piece based on precision ball-bearing mechanism, enables smooth objective range |
Anti-Fungus treated Optics:
Unique chemical treatment ensures image excellence for long periods in conditions favoring to fungus growth
Parfocal & Centered Objectives:
Minimises use of the fine focussing and stage control knobs during objective change over
Optics with multi layer coating:
High grade optics provides optimum brightness & contrast for long hours of comfortable viewing
Micron Sensitive mechanical movements
Enables easy manipulation of specimen
Specifications:
| Body Style | Aluminium die-cast body with all critical movements based on ball bearing & wire guides thereby ensuring smooth & precise manipulation | |
| Illumination Base | Built-in illumination base with pre-centred 6V 20W halogen bulb coupled with an efficient collector lens system provide optimum brightness along the optical path. A conveniently positioned slider knob enables varable light control. | |
| Condenser | Sub-stage condenser with its compound lens system ensures that the traerse of light along the microscope’s optical path is optimised. The built in iris diaphragm enables maximum contrast of the specimen under observation. | Abbe condenser with aperture iris diaphragm, N.A. 1.25 provided with a filter holder and blue filter |
| Monocular (M) Inclined Observation Head | 45 degree inclined | A unique design of observation head provides uniform illumination for ease of observation & eye comfort during extended usage. |
| Rotatable through 360 Deg | ||
| a) With a special anti-fungus treatment | ||
| b) With anti-reflection optical coating of prisms to enhance the brightness of the image | ||
| Eyepiece (widefield) | WF 10x (F.No. 18 ) compatible with an optionally available eyepiece micrometer | Unique compensating eyepiece provides relief from eye fatigue & renders color compensated image of utmost clarity. Color Corrected in all magnifications including high power objective resulting in betterdefined images |
| Optional Accessories | Phase contrast, dark field and polarization accessories, & imaging solutions with micro image projection system, image analysis Software etc. | |
Additional Information:
- Item Code: MLXM
- Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
- Delivery Time: 2 week
