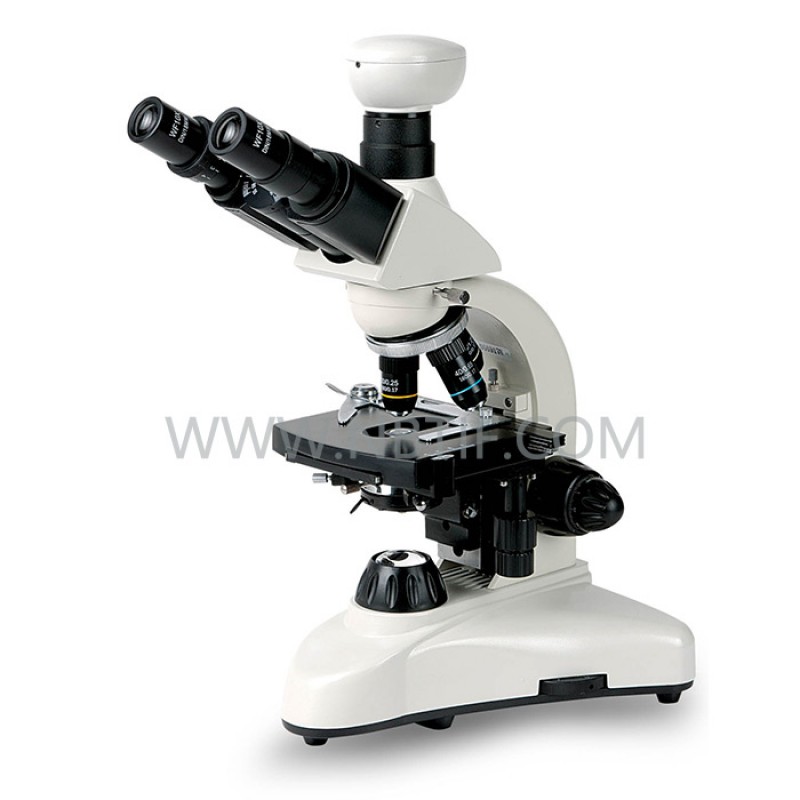

Digital Microscope XSZ-152SE

Model XSZ-152 Digital Microscope is a reformation of microscope .It breaks through the utmost of the functions of normal microscope and initiates an epoch in micro technology ! Through installing CMOS transmitting it to computer by digital technology being applied in the microscope enlarges the application range of microscopes.

The image measuring software which is specially developed for digital microscope makes the user observe the image data more clearly .The image displayed on the screen of computer can be enlarged hundreds times more than the one observed by eyepiece .That makes you observe the specimen more clearly and easily.

Specification


Viewing head
0.3Mega pixels CMOS Digital Compensation Free Binocular
Head. Inclined at 30o
Optional
1.3Mega pixels CMOS Digital Compensation Free Binocular
Head. Inclined at 30o

Interpupillary  Distance
55mm -75mm

Eyepiece
WF10X/ 18mm

Objective
Achromatic objective:   objective:4X,10X,40X(S),100X(S)Oil

Condenser
N. A.1.25 Abbe condenser with iris diaphragm&filter

Focusing
Coaxial coarse&fine focusing adjustment with rack and pinion
mechanism Fine focusing scale Value 0.002mm

Collector
High brightness light collector

Light source
Halogen bulb 6V/20W.AC 85V-230V

Adjustable brightness
