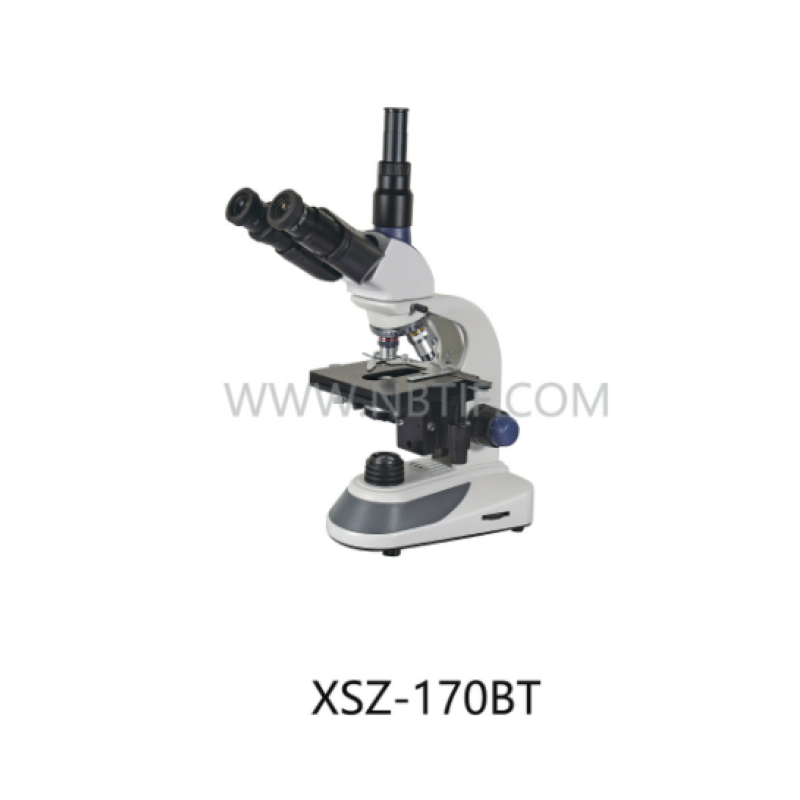

Biological Microscope XSZ-170BT


Specification

Viewing Head




Compensation Free Binocular Head, Inclined
at 30° ( 48mm -75mm )


Eyepiece



WF10 X 22mm




Objective



infinity Achromatic Objective: 4X , 10X ,    40X(S),100X (S) Oil




Stage
Double layer mechanical stage




Stage Size:132mmx 140mm




Moving Range: 70mmx 50mm




Condenser
N. A.1.25 Abbe condenser with iris diaphragm and
filter




Focusing

Coaxial coarse & fine focusing adjustment,

fine focusing scale value 0.002mm

focusing range 30mm





Light Source
LED,brightness adjustment




Optional Accessory
Eyeppiece: WF16x,WF20x,P16x
Achromatic Objective:20X(S)、60X(S)
Plan objective:4X,10X,20X(S),40X(S),60X(S),100X(S)Oil

infinity plan objective: 4X,10X,20X(S),40X(S),60X(S),100X(S)Oil

Dual viewing head

Dark field and phase contrast attachment

1.3Mega、3.0Mega、5.0Mega、10.0Mega

COMS digital camera eyepiece

Photography attachment and CCD C-mount:0.5X、0.57X、0.75X

CCD Camera,colur1/3 High resolution 700 TV lines
