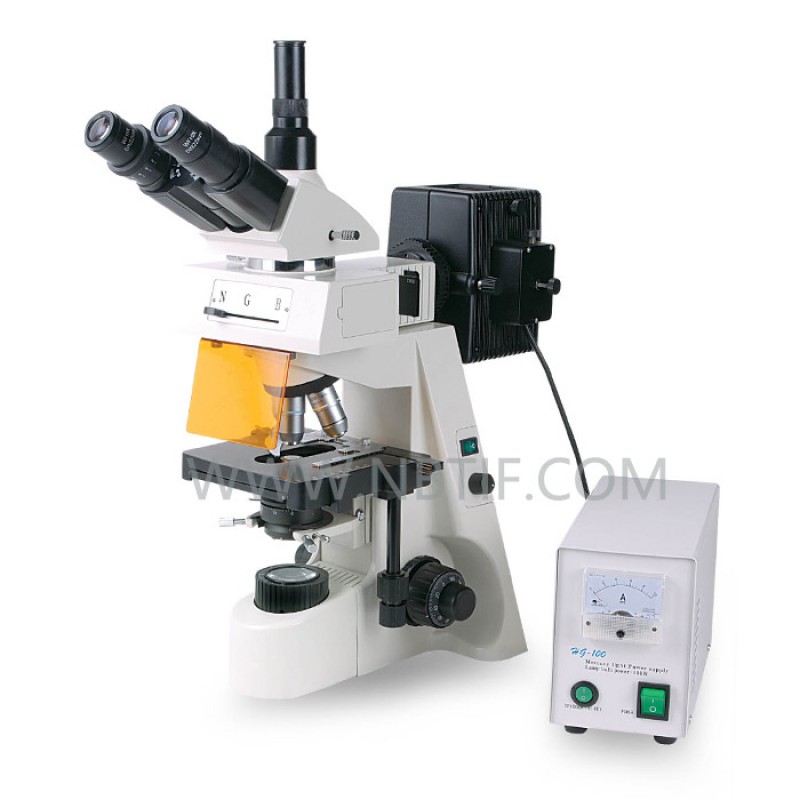

Model XYL-146Y Epi-fluorescent microscope is widely used in Biology, latrology, Immunology, Genetics, Material science, etc. It is usually outfitted with 2 wave bands ,B&G, and you can also proceed general transmission view at the same time . U&V. wave band is available for option.
High quality optical system and B&G. fluoroscope box bring you satisfactory fluorescent effect.
Specification
Eyepiece | WF10X/ 22mm | ||||||
Fluoroscope box | B 、G Wave band | ||||||
Viewing Head | Compensation Free Binocular Head .Inclined at 30 ° | ||||||
Objective | Infinity Plan Objective: 4X,10X,40X(S),100X (S) 0il | ||||||
Nosepiece | Quadruple Nosepiece with DIC jack,adjustable center | ||||||
Stage | Double layers mechanical stage Stage size: 180mmX 150mm Moving range : 75mmX 50mm | ||||||
Focusing |
Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm | ||||||
Condenser | N. A.1.25 Abbe condenser with iris diaphragm&filter |
| |||||
Optional Accessory | 1.3 or 3.0 Mega pixels CMOS electronic eyepiece, Photography attachment PInfinite Apochromatic Fluorescent Objectives: 4X,10X,20X,40X,100X | ||||||
