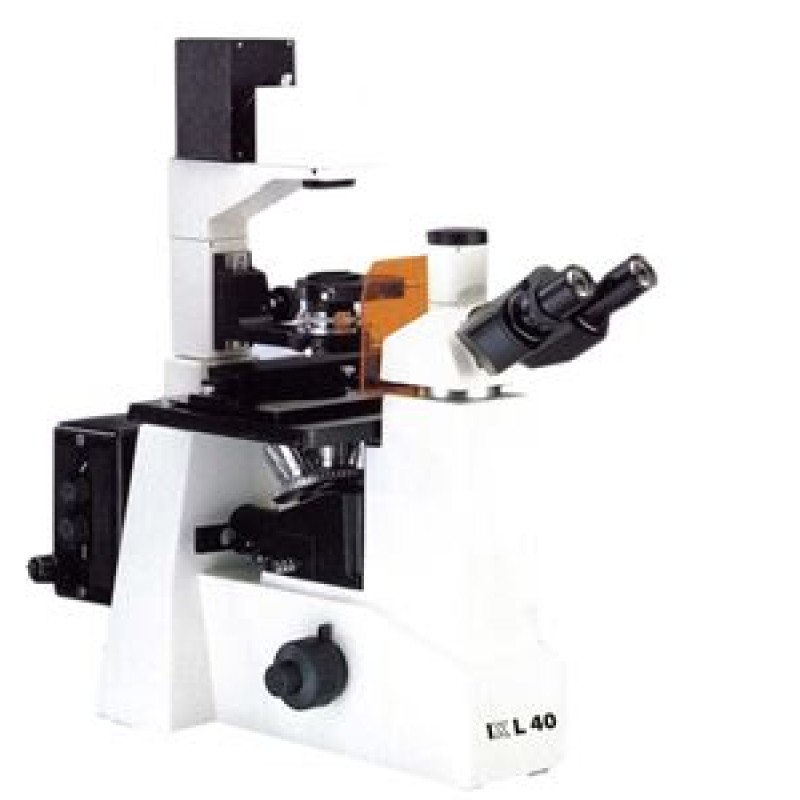

Cell cultivation examination and Assisted Reproductive Technologies (ART) such as IVF become easy when a researcher is with a microscope that is modular as well as friendly like the LABOVISION’s IXL 40. High Quality optics and a sturdy yet modular design make the IXL 40 inverted microscope closest to one’s heart.
SPECIFICATION
STAND | Ergonomically designed sturdy stand. |
EYEPIECES | Wide Field Eye Piece WF 10x/20mm Anti Mould Treated paired with eye guards. |
VIEWING BODY | Siedentopf Trinocular, 30° inclined, 360° rotatable, IPD 55-75 mm. |
FOCUSING | Co-axial coarse and fine focussing mechanism system on ball bearing guide-ways. Tension adjustment ring and auto focus provided. |
NOSEPIECE | Quintuple Reverse Angle Nosepiece (Ball Bearing Type). |
MECHANICAL STAGE | Fixed plain stage with attachable movement range of 112 mm X 79 mm. |
ILLUMINATION | A: Transmitted Illumination System 6V-30W Halogen with Intensity Control, with Power Supply 220V or 110V, ISO 9001, CE approved. B: Transmitted Illumination System 6V-30W Halogen with Intensity Control, with Power Supply 220V or 110V, ISO 9001, CE approved. Reflected light: 100w. DC Mercury Lamp, Power supply 110V-220V. |
OBJECTIVES | A. IXL PPH: IX Series LWD DIN PLAN Achromatic Phase Objectives 10x/NA 0.25, 25x/NA 0.40, 40x/NA 0.60 B. IXL FL: IX Series LWD DIN PLAN, True Color Achromatic Fluorescence Objectives 5x/NA 0.12, 10x/NA 0.25, 25x/NA 0.40, 40x/NA 0.60. IX Series LWD DIN PLAN Acromatic Phase Objectives 10x/NA 0.25, 25x/NA 0.40, 40x/NA 0.60 |
CONDENSER | Long working distance condenser, suitable for phase contast/BF with phase contrast Rotating Slider Turret, working distance 55 mm and Phase Telescope. |
OPTIONAL ACCESSORIES | Image Capture Module with Image Analysis Software, Simple Polarizing Attachment. |
EXCITATION SYSTEM | UV (Ultra violet), V (Violet), B (Blue), G (Green) |
