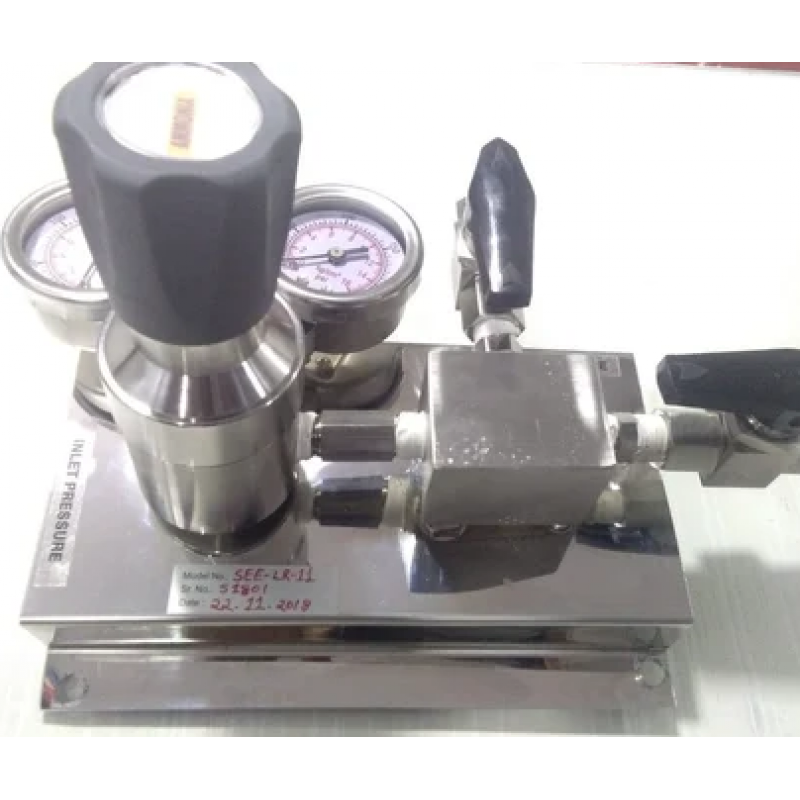

Ammonia Gas High Pressure Regulator
Product Details:
With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Ammonia Gas High Pressure Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards. With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Two Stage Pressure Regulator. Our skilled professionals use premium grade components and contemporary technology in the manufacturing process of this regulator. To ensure its functioning and dimension accuracy, this regulator is duly examined against numerous measures of quality in accordance with defined industry standards.
Features:

• Stainless Steel Diaphragm
• Standard 10 μm sintered bronze filter at inlet of main valve assembly
• Cleaned for Oxygen service


Specifications:

• Stainless Steel Diaphragm
• Standard 10 μm sintered bronze filter at inlet of main valve assembly

• 1.6 μm internal surface finish as standard
• Cleaned for Oxygen service

• Bubble tight shut-off
• Inlet pressure: 210 bar (3000 psi)

• Outlet range: 0 to 25 bar (360 psi)
• Supply pressure effect less than 0.05%
  Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm. Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure. High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Chlorine, etc. are also available.

Type	Single-stage / Double-stage/ Piston/
Material of construction	SS 316 / Brass Chromplated
Diaphragm	SS 316 with Teflon Seat
Pressure Gauges	SS 316 / Brass
Inlet Pressure	0-210 kg/cm², 0-280 kg/cm²
Outlet Pressure	0-2 kg/cm², 0-7 / 0-10 / 0-16 kg/cm²/ as per requirement
Flow (LPH)	300 (max)
Gas Services	Air, N2, H2, HE, Acetylene, Argon, N2O, Methane,
	Ammonia, HCL, Chlorine, SO2, Isobutene & other gases
Outlet Connection	1/4, 1/8 OD NPT / Hose
Inlet Connection	As per requirement of Gas
