HORIZONTAL CYLINDRICAL AUTOCLAVE FULLY AUTOMATIC
Product Details :

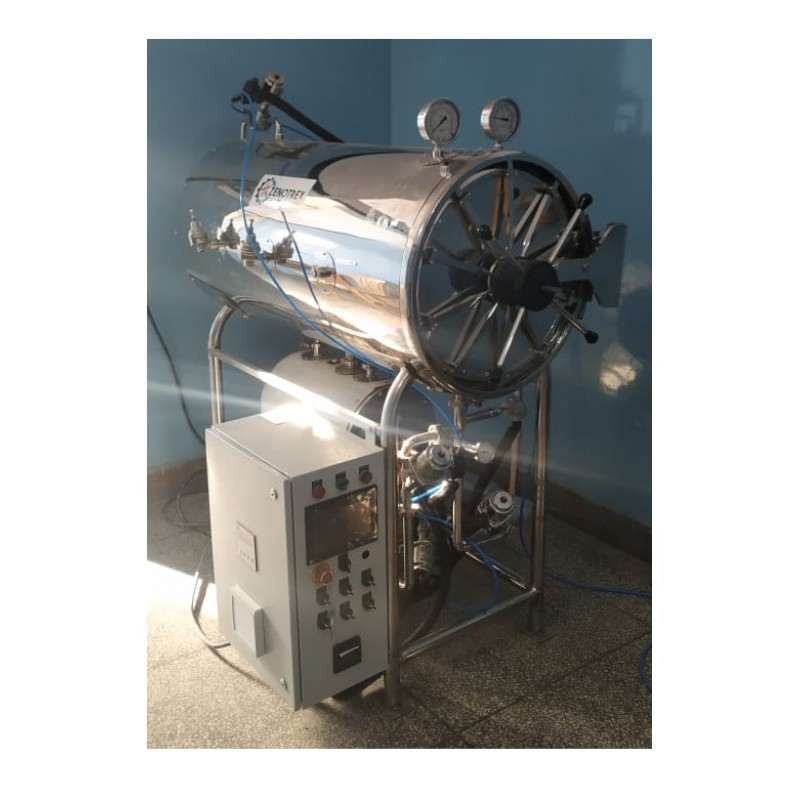

In order to meet large capacity sterilization needs, Zenotrex brings to you a comprehensive range of horizontal autoclaves. These horizontal autoclaves are front loading in design, big in size and designed in cylindrical shapes. These high pressure front loading autoclaves play important role in sterilization procedures required in hospitals, pharmaceutical companies, biopharma and microbiology laboratories etc.
We manufacture cylindrical horizontal autoclave systems, which can be further customized in order to match specific requirements of our customers. Each horizontal autoclave unit provides highly satisfactory performance and competitive price guarantee.
Features:
- Available in cylindrical shapes.
- Inner tank capacity up to 240 liters or more for cylindrical.
- Automatic pressure locking device.
- Steam Storage construction.
- Single and double doors.
- Immersion type heating element.
- Silicon gasket door seal.
- Automatic vacuum breaker.
- Low water cut-off device
- Hydraulic testing up to 2.5 times working pressure.
Specifications:
Design | Cylindrical Type |
Working Pressure | Variable 15 to 30 PSI |
Working Temperature | 121°C to 134°C |
Internal Chamber | Corrosion Resistant Stainless Steel |
External Chamber | Corrosion Resistant 304 Grade Stainless Steel |
Door | Single or Double Doors with automatic pressure locking |
Insulation | Glass wool insulation |
Sterilization Period | 15 to 25 Minutes |
Steam Exhaust | 5 to 7 Minutes |
Boiler | With ISI marked water immersion type industrial heating elements |
Safety Valve | For excess pressure inside jacket and steam generator |
Mechanical Time w/ Alarm | Regulates sterilization time and activates buzzer when sterilization cycle completes |
Accessories | – PLC operation |
Power Supply | 220 Volts / 440 Volts |
Dia. x Height (mm) | Volume (Liters) | Load(KW) |
400 x 600 | 78 | 6 |
400 x 1100 | 138 | 12 |
550 x 900 | 175 | 12 |
500 x 1200 | 235 | 15 |
600 x 1200 | 339 | 18 |
