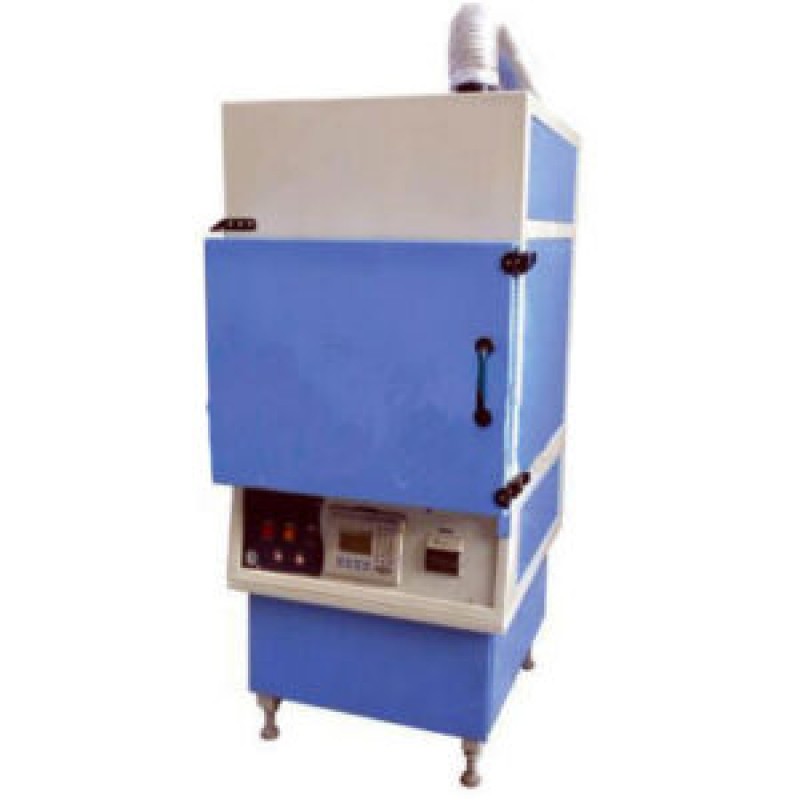

Asphalt Content Tester

Product Detaills:

Asphalt Content Tester, also know as Asphalt Content Furnace or Binder Ignition Furnace, is used to determining the asphalt content of hot mix asphalt (HMA) and pavement samples by removing the asphalt in an ignition furnace by means of sample heating, not by means of a solvent.

SPECIFICATION

Suitable for operation on 415 V 50 Hz 20 ampere three phase ac power supply. Maximum weight specimen is 4000 gms, suggested weight of specimen is 1000 gms to 1500 gms. Balance provided is 10 Kg x 0.1 gms, working temperature of furnace is 800° C, standard working temperature is 538° C. Testing time is 20-30 minutes. Size of the furnace: 350 mm length x 430 mm width x 300 mm height.
