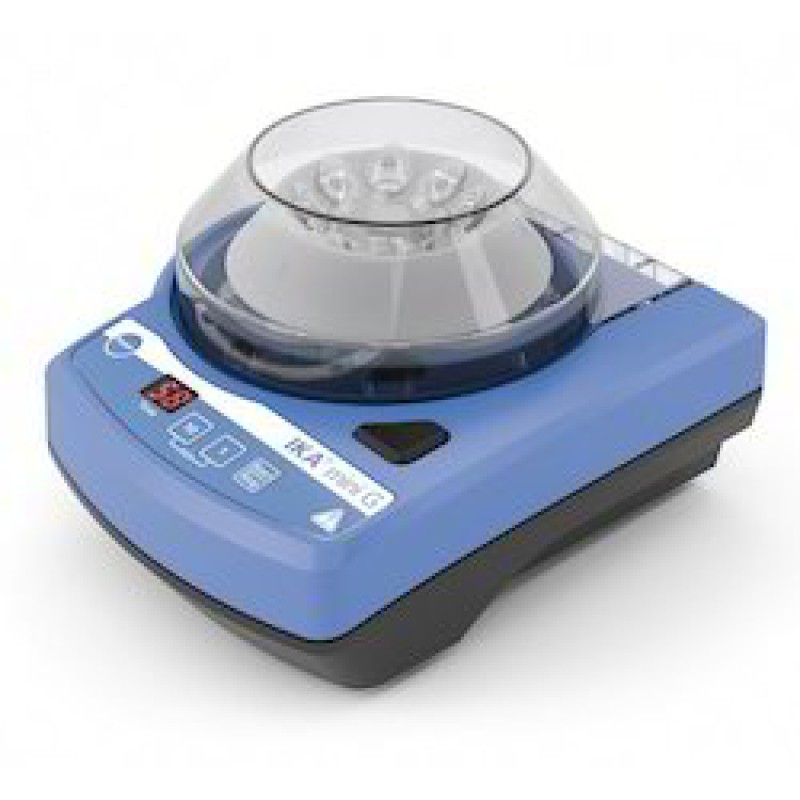

IKA Mini G Mini-Centrifuge
Product Details :
| Size/Dimension | Dimensions (W x H x D) 155 x 105 x 175 mm |
| Model Name/Number | IKA Mini G |
| Speed | 6000 RPM Fixed |
| Brand | IKA |
| Capacity | 8x 2.0ml |
| Color | Blue |
Mini-centrifuge for all applications which do not require high speeds, e.g. micro-filtrations and cell separation. Transparent cover allows constant observation of centrifuge. The mini-centrifuge can be used for both PCR-vessels and PCR-strips. As a safety feature, the centrifuge will run only when the lid is closed. Lid opens easily with the press of a button.
- Fixed speed of 6000 rpm
- Digital timer adjustable from 1 to 99 mins
- Integrated quick stop
- Fast startup of speed
- Compact design and quiet operation
- Rotor exchangeable without tools
- Easy operation with touch keypad
Technical Data :
| Capacity | 8x 2,0ml |
| Pemitted density | 1.2 kg/dm3 |
| Centrifugal acceleration | 2000 G |
| Kinetic energy max. | 20 Nm |
| Motor rating input | 12 W |
| Motor rating output | 8 W |
| Speed range | 6000 – 6000 rpm |
| Reversible direction of rotation | no |
| Speed deviation | 5 % |
| Power-on time ON | 99 min |
| Timer | yes |
| Timer display | 7 segment LED |
| Permissible ON time | 100 % |
| Unbalance sensor | no |
| Quick stop | yes |
| Cover opening | automatic |
| Rotor exchange | without tool |
| Protective cover | yes |
| Dimensions (W x H x D) | 155 x 105 x 175 mm |
| Weight | 1.4 kg |
| Permissible ambient temperature | 5 – 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 30 |
| USB interface | no |
| RS 232 interface | no |
| Analog output | no |
| Voltage | 100 – 240 V |
| Frequency | 50/60 Hz |
| Power input | 12 W |
| DC Voltage | 24 V= |
| Current consumption | 500 mA |
