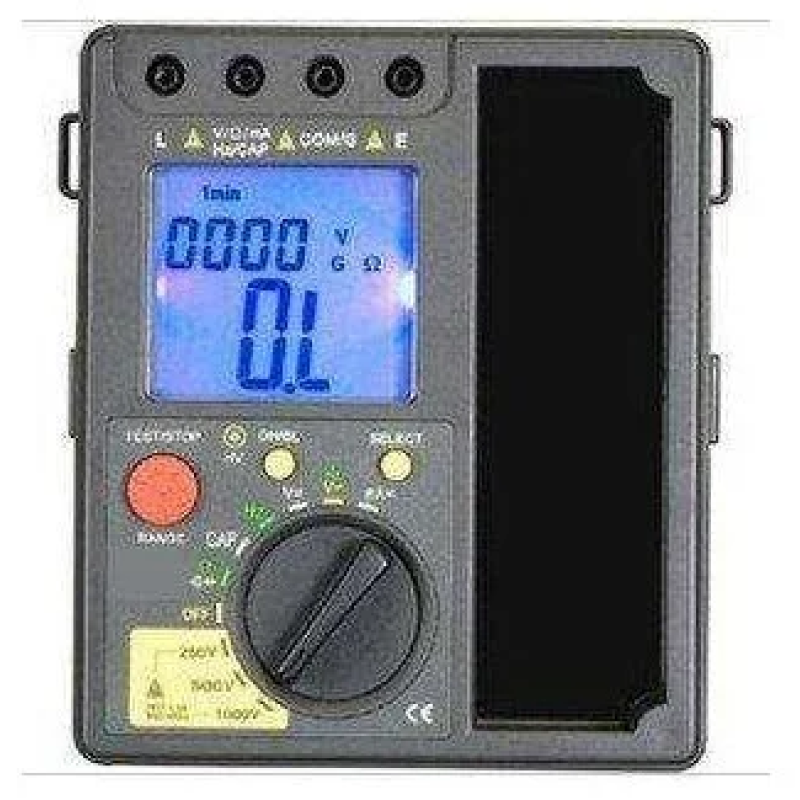

Digital Insulation Tester

Testing Voltage	220 V
Material	Stainless Steel
Control-System	Fully Automatic

With the help of experts, our entity is accomplished to provide Digital Insulation Tester. We offer this product at nominal prices.

Also having facility to check different parameters like:
AC/DC Voltage, AC/DC mAmp Current, Frequency, Capacitance, Resistance, Continuity, Diode Checking

Power source : 6 X 1.5V AA Batteries
Dimension : 170 X 156 X 64mm
Weight : Approx. 650g (including battery)
3999 counts max.
With Backlight & overload protection

Technical Specifications
Test voltage	500V ± 10%	1000V ± l0%	2500V ± l0%
Resistance range	0.5MΩ - 4GΩ	1.5MΩ - 40GΩ	5MΩ - 40GΩ
Accuracy	0.2M to 200 MΩ ± 3.0%+5, 200M to 4 GΩ ± 5.0%+5, 4G to 40 GΩ ± 10%+5
Short circuit current	1.5mA	1.5mA	1.5mA
Timer Setting	1min, 2min & 10min
