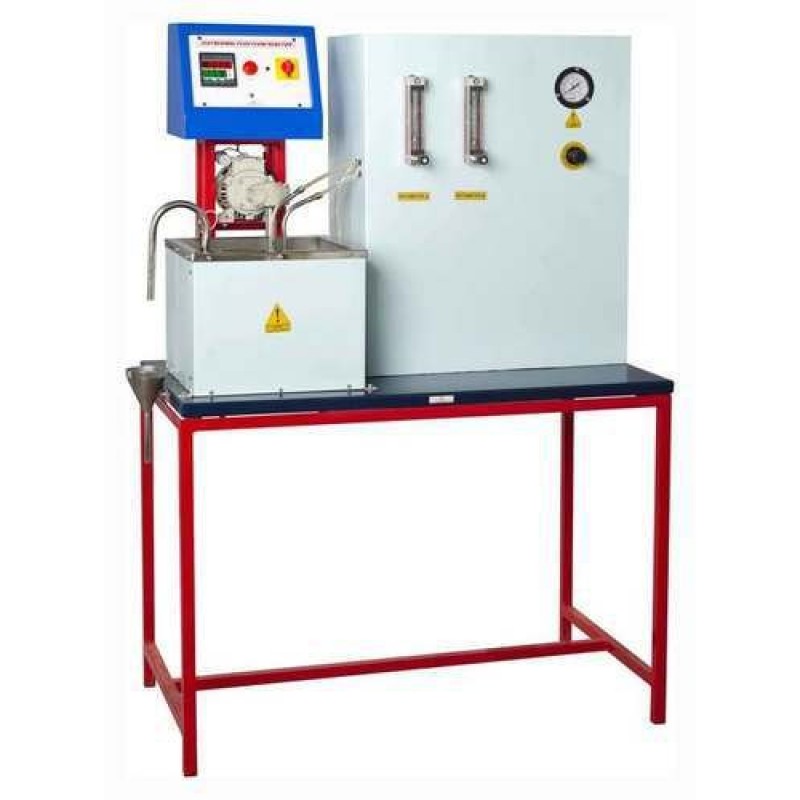

CONTINUOUS STIRRED TANK REACTOR APPARATUS

Product Details:

Brand

saini

Description The set is mounted on the base plate and easily can be installed on the chemical reactor service unit for conducting experiments. Reactants are fed to the system and mixed in the reactor. A variable speed mixer with speed control facility is provided to conduct the experiment on different speed of the impeller thus to determine the effect of mixer speed. Detachable baffles also accompany the reactor vessel. A coil is placed in the reactor through whom hot water with constant temperature is circulated which enables to enhance the experimentations for different temperature
Experimentation/Learning Objectives
• To study the effect of variation of conversion with residence time. • To determine the reaction rate constant. • To study the effect of temperature on reaction rate. • To study the effect of efficiency of mixing
Utilities Required • Chemical Reactor Service Unit
Technical Details
Reactor : Material SS, Capacity 0.5-1.5 Ltrs. (Approx.) • Agitator : Variable speed with speed control facility • Impeller : Material Stainless Steel, 4 Square bladed (1 No.) • Baffles : 4 Nos., Detachable. • Heating Coil : Material Stainless Steel for heating purpose. • Whole assembly is fixed on a base plate, which can be installed on service unit. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted
