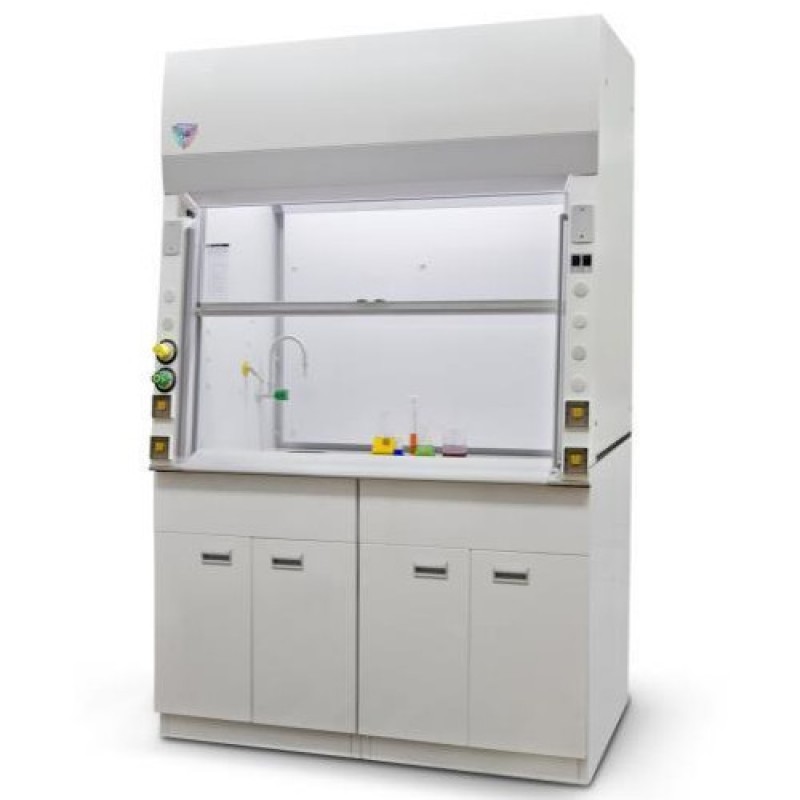

Fume Hood

Product Details:

Brand	APS Laps
Body Material	SS
Voltage	220/230 v

Designed so as to throw-out al toxic/ harmful vapours, thus protecting costly instruments and the person working in the lab. Working table top is fitted with acid/alkali resistant tiles/ Stain Steel and a small wash basin with connections provided for inlet and outlet of water. The front door moves vertically up and down with concealed counter balanced weight. The unit if fitted with fluorescent light and a gas cock for gas/air supply. The space under the work station can be provided with storage compartments for storage purpose. The front facing panel is fitted with 15/5 Amp socket with switches for exhaust system and fluorescent light. TO WORK ON 220/230 volts A.C. Supply

Details:

Dimensions	Wooden	M.S	S.S
2' x 2' x 2'	73500.00	85750.00	120000
3' x 2' x 2'	90625.00	101875.00	137250
4' x 2' x 2’	105500.00	123750.00	187500
6' x 2’x2'	151875.00	176500.00	289875
Optional Accessories:
PVC Fume Duct (per ft.)			1875
Inner chamber FRP/ S.S. (Per FT.)			1125
Lining on Working walls extra (Per FT.)			625
Programmable Graphic LCD Controller cum display (PID)			12500

Additional Information:

• Item Code: APS-123
