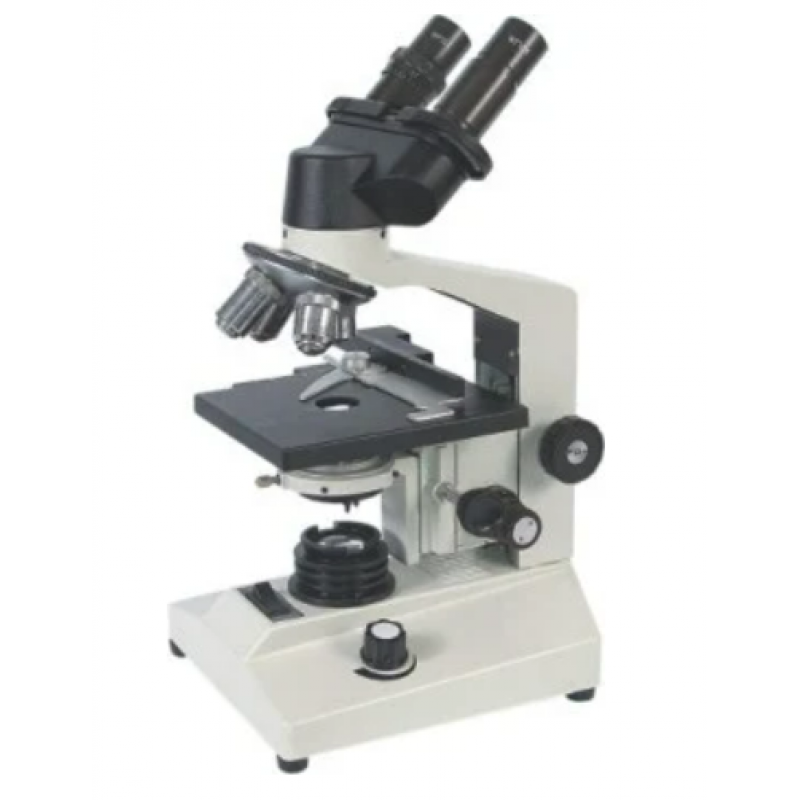

Inclined Binocular Microscope
We offer Inclined Binocular Microscope with following technical specification:
Name Inclined Binocular Microscope
Frame All aluminum pressure diecasted body. Paint Powder coated, available in various desired shades. Nose piece Quadruple ball bearing nosepiece. Binocular head 360* rotate able and 45* inclined head with all anti-fungus coated prisms. Focusing system Separate knobs for cores and fine motion having least count of .002 mm. Mechanical stage Conventional Cxl mechanical stage works on dovetail slides.(other stages also available). Condenser Bright field sub stage condenser having 1.2 N.A. Eyepieces & objectives Set of 4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces. Illumination 6v, 20w halogen lamp needs 220v and 50Hz supply.
| Name | Inclined Binocular Microscope |
| Frame | All aluminum pressure diecasted body. |
| Paint | Powder coated, available in various desired shades. |
| Nose piece | Quadruple ball bearing nosepiece. |
| Binocular head | 360* rotate able and 45* inclined head with all anti-fungus coated prisms. |
| Focusing system | Separate knobs for cores and fine motion having least count of .002 mm. |
| Mechanical stage | Conventional Cxl mechanical stage works on dovetail slides.(other stages also available). |
| Condenser | Bright field sub stage condenser having 1.2 N.A. |
| Eyepieces & objectives | Set of 4x, 10x, 40x, and 100x and a paired set of 10x wide field eyepieces. |
| Illumination | 6v, 20w halogen lamp needs 220v and 50Hz supply. |
Inclined Binocular Microscope
- Views: 26
-
Gaurav Manufacturing Enterprises - Vendor Type: Manufacturer, Distributor, Supplier
- Product Code: GME-0000012
- Availability: In Stock
- ₹0
