Incubator

product Details :

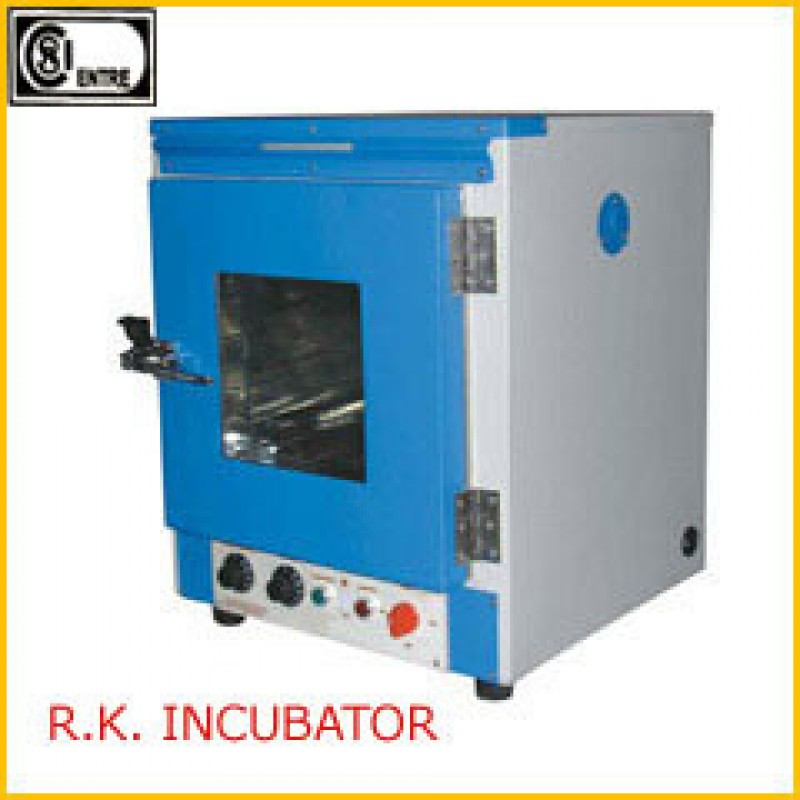

R.K. Incubator

Construction: - Incubator are sturdy, with double walled’ construction with complete inner chamber made of anodized aluminum or highly polished

stainless steel. Outer chamber is made of mild steel sheet, finished with powder coated paint. 75mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to convenient height. Supplied with  2 removable shelves. SHELVES are made of fully anodized aluminum sheet as per chamber. Door is insulate & fitted with heavy hinges. Door has double glass window which facilitate inspection of samples without opening the door.

Heating Element:-heating elements are made of high grade nickel/chrome plate nichrome wire witch are put inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.

Temperature Control:- temperature is controlled by imported capillary type thermostat form ambient to 100°C. Temperature control knob is graduated in centigrade degrees degrees after actually observing the temperature in steady state. An L-shaped prismatic glass thermometer is fitted on top of the incubator for reading the chamber temperature.

Ventilation:-Air ventilators are provided on both sides at top to flue away any gas or fumes.

Control Panel: - the equipment is provided with a panel having a thermostat control knob, ON/OFF switch and two pilot lamps.

Power Requirement:-Supplied with coed and plug suitable to operate on 220V single phase, 50 Hz, AC supply.

Size of inner chamber:

W x H x D

355 x 355 x 355mm –Stainless Steel

355 x 355 x 355mm –Aluminum
