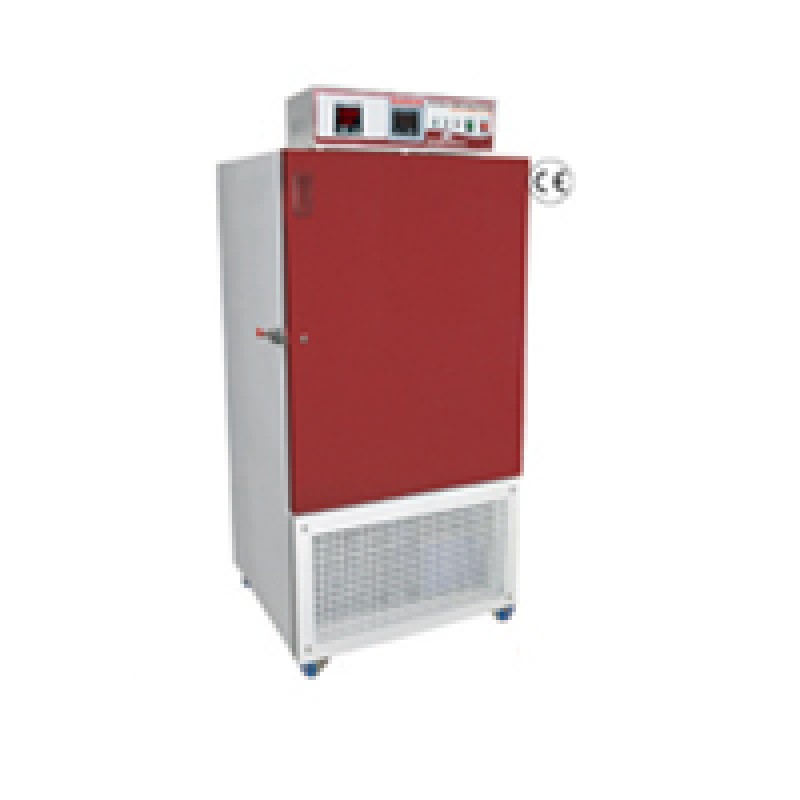

B.O.D. INCUBATOR LOW TEMPERATURE DELUXE MODEL
Product Details :
·
Most suitable for experiments
requiring low temperature conditions like microorganism or activation, cell
culture process of animals and plants, good storage and desalting process of
enzyme extracts etc.
·
With a solid double
walled door and a full view inner plexi-glass door enables inspection and
monitoring of inner chamber specimens without distributing the process
temperature.
·
Excellent quality
magnetic gum packing door gasket for external door.
·
User-oriented design
of shelves makes you adjust each space of shelves without difficulty.
·
Forced air circulation
at triple walled back by durable coaxial blower, maintains optimum temperature
uniformity and homogeneity.
·
High grade HIGH
PRESSURE FOAMED IN-PLACE PUF INSULATION between outer and inner chamber for
minimal thermal losses.
·
Caster wheel mounted
for easy portability.
·
Front double walled
door is provided with lock and key arrangement.
·
Door operated
illumination lamp is fitted inside the chamber for easy visibility.
·
Finned tube evaporator
facilitates uniform and faster cooling effects.
MODEL | #REW-3 | #REW-4 | #REW-6 | #REW-10 | #REW-12 |
Dimension Inner (WxDxH) (in mm) | 400x450x450 | 455x410x610 | 505x415x830 | 570x550x875 | 650x580x900 |
Capacity | 85 ltrs | 112 ltrs | 171 ltrs | 280 Ltrs | 340Ltrs |
Volume | 3.0 Cuft | 4 Cuft | 6.1Cuft | 10Cuft | 12Cuft |
No. of Shelves | 2 | 2 | 2 | 3 | 3 |
MOC Outer | Powder coated CRC
Steel Sheet or Stainless Steel | ||||
MOC Inner | Chamber and trays
made of Stainless Steel (SS-304) | ||||
Type | Forced Convection
Type | ||||
Freezer Compressor | Hermetically sealed
air cooling compressor system | ||||
Temperature Range | 5OC to 60OC
(Resolution 0.1OC) | ||||
Accuracy | + 0.5 OC | ||||
Safety | Over temperature
limiter switch prevents overheating | ||||
Temperature Controller | Digital Temperature
Indicator cum Controller with LED display OR Microprocessor based Digital
Temperature Indicator-cum-controller with LED Display for Set Value (SV)
& Process Value (PV). | ||||
Electric Supply | 220/230V AC, 50/60Hz | ||||
MODEL | #REW-15 | #REW-16 | #REW-18 | #REW-20 |
Dimension Inner (WxDxH) (in mm) | 700x640x900 | 700x640x970 | 700x640x1100 | 700x700x1100 |
Capacity | 420 ltrs | 450 ltrs | 500 ltrs | 560 ltrs |
Volume | 15 Cuft | 16 Cuft | 18 Cuft | 20 Cuft |
No. of Shelves | 4 | 4 | 4 | 4 |
MOC Outer | Powder coated CRC
Steel Sheet or Stainless Steel | |||
MOC Inner | Chamber and trays
made of Stainless Steel (SS-304) | |||
Type | Forced Convection
Type | |||
Freezer Compressor | B.O.D. INCUBATOR LOW TEMPERATURE DELUXE MODEL
