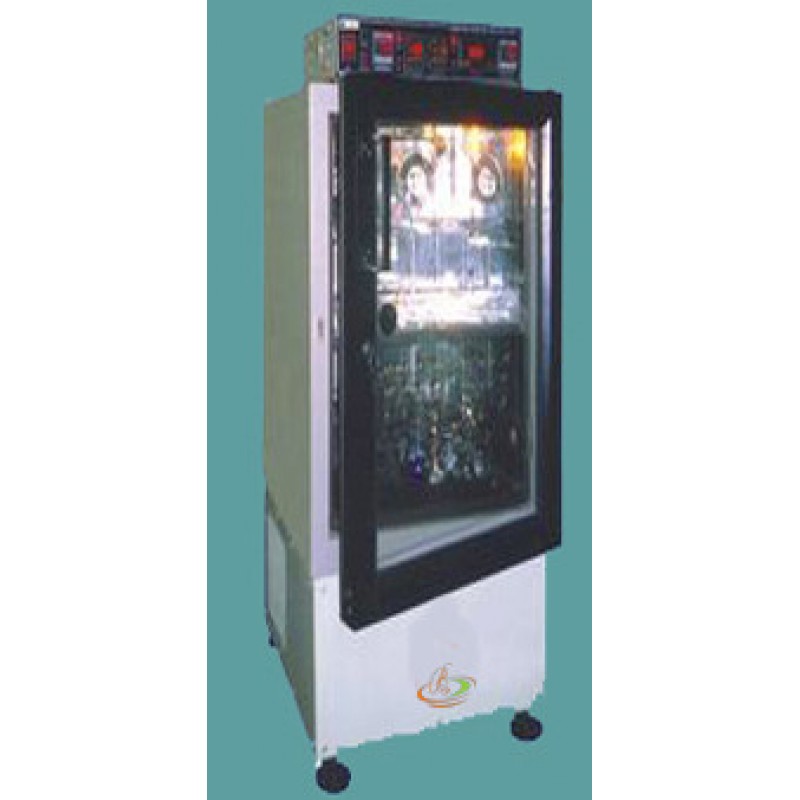

Zonotech Orbital Incubator Shaker
TECHNICAL SPECIFICATION
- Orbital shaking incubators are specially designed to have combined advantage of a closely controlled incubation/storage - temperatures with orbital shaking.
- Constructed of double walls, the exterior is made of Mild Steel Sheet and lnteriorof Stainless Steel (304).
- The plexiglass inner door makes it possible to inspect specimen without disturbingthe temperature.
- Outer Door is made of Toughened Glass window in Frame with lock & Key.
- Air Circulating fan creates positive air flow through the incubator, and maintain uniform temp.
- With 2 nos. perforated Stainless Steel adjustable trays. Incubator Shaker (Refrigerated Model) incorporates hermetically sealed lSl marked CFC Free compressor housed below the incubatorto provide temperature below ambient.
- The control Panel comprises of Microprocessor Based PID Digital Temp. Controller, Digital RPM Indicator, Speed Regulator.
Driver :
- Triple Eccentric Counter balanced drive with permanently lubricated ball bearing ensures high stability and reliability.
Drive Motor :
- Brushless Induction Drive Motor, maintenance free.
Automatic Restart :
- Automatic restart at preset speed in case of Power Failure.
Speed Control :
- Microprocessor Based.
Safety :
- Auto cut off in case of overshoot of temp, short circuit protection by MCB/Overload Glass Fuse.
MODEL | BO-250 NON- REFRIGERATED | BO-250 C REFRIGERATE | BO-100 NON- REFRIGERATED | BO-100 C REFRIGERATED |
Working Capacity | 250 It. | 250 It. | 165 lt. | 165 lt. |
Temp Range | Ambient+ 5A°C to 60A°C | 5A°C to 60A°C | Ambient+ 5A°C to 60A°C | 5A°C to 60A°C |
Temp. Control | PID Microprocessor Based | |||
Temp. Accuracy | 0.1A°C - 0.4A°C | |||
Shaking Speed | Variable Microprocessor Controlled | |||
Speed Range | 30 to 300 rpm. 11 rpm. | |||
Orbital | Dia 19 mm. |
