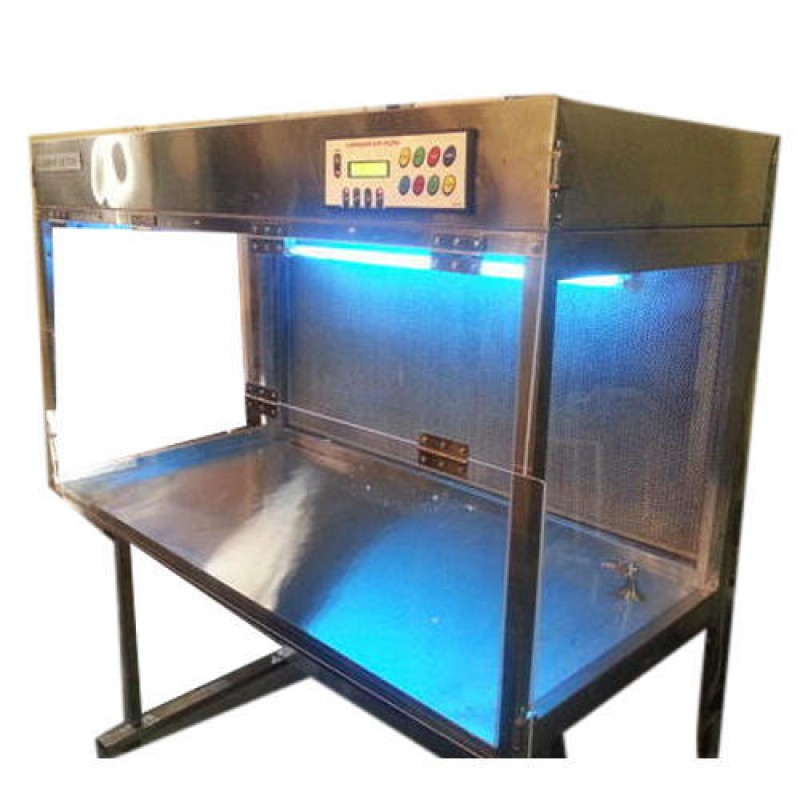

Horizontal Laminar Air Flow
Product Details :
We are indulged in offering the finest quality Horizontal Laminar Air Flow.
Features:
- Sound level less than 65db.
- Suitable for class 100 conditions.
- HEPA filter Efficiency is 99.97% down to 0.3 micron.
- Working Table made of Stainless Steel 304.
- Built in UV. Germicidal light.
- Static Pressure Manometer.
- Cock for Gas and Air is provided in working Area.
- Working Area is Illuminated with Fluorescent light.
- Supplied with plug in to work on single phase 220/230 volts AC Supply.
Specification:
- Sound level less than 65db.
- Suitable for class 100 conditions.
- HEPA filter Efficiency is 99.97% down to 0.3 micron.
- Working Table made of Stainless Steel 304.
- Built in UV. Germicidal light.
- Static Pressure Manometer.
- Cock for Gas and Air is provided in working Area.
- Working Area is Illuminated with Fluorescent light.
- Supplied with plug in to work on single phase 220/230 volts AC Supply.
Specification:
Working Size | 2’ x 2’ x 2’ | 3’ x 2’ x 2’ | 4 ‘x 2’ x 2’ |
Working Table Size | 2’ x 2’ | 3’ x 2’ | 4 ‘x 2’ |
HEPA Filter Size | 2’ x 2’ x 6” | 3’ x ‘ x 6” | 4 ‘x 2’ x 6” |
No. of Motor/Blower | 1 | 1 | 1 |
Illumination | 1 x 20W | 1 x 20W | 1 x 20W |
Work Table | Stainless Steel 304 | Stainless Steel 304 | Stainless Steel 304 |
Main Filter | HEPA 99.97% efficient @ 0.3 micron particles | HEPA 99.97% efficient @ 0.3 micron particles | HEPA 99.97% efficient @ 0.3 micron particles |
Pre-Filter | Highly efficient Washable | Highly efficient Washable | Highly efficient Washable |
U.V. Light | 1 | 1 | 1 |
Manometer | 1 x Static Pressure | 1 x Static Pressure | 1 x Static Pressure |
Door | Front Open Clear Acrylic Door | Front Open Clear Acrylic Door | Front Open Clear Acrylic Door |
Accessories | Gas/ Air Cock | Gas/ Air Cock | Gas/ Air Cock |
