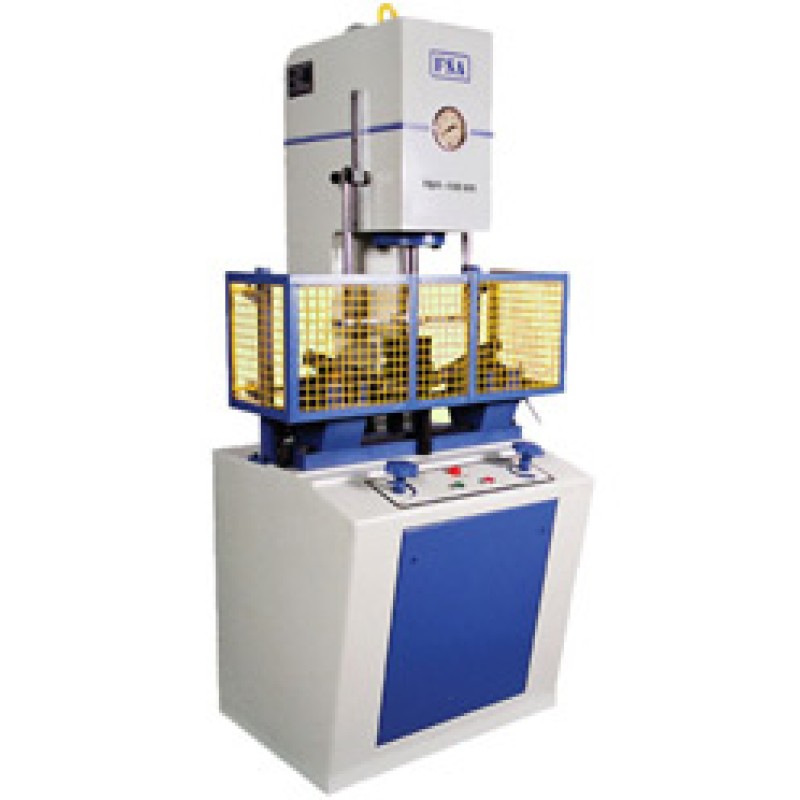

Bend And Rebend Testing Machines ( FBR-100 KN )

• To conduct testing of carbon steel bars upto 40 mm diameter for reinforcement of concrete.
• C- frame design & hydraulically operated.
• Maximum load capacity provided is 100 KN.
• Dia. of support rollers is 100mm & distance between support rollers is 400mm.
• Different sizes of formers (tools) are available from diameter 6 to 400mm.
• Suitable re-bending tools supplied which will be incorporated in the machine.
• Hinged grilled safety doors at front is provided for safety.
• Accuracy conforming to BS : 4449.

Technical Specifications - For Bend And Rebend Testing Machine (Model : FBR - 100 KN)

Hinged grilled safety door at front is provided.

• Maximum load capacity 10,000 kgs.
• Maximum downward speed of piston 300 mm / min.
• Stroke of piston 250 mm.
• Maximum operating pressure of hydraulic system 200 kg /cm sq.
• Dia. of support rollers 100 mm.
• Distance between support rollers (adjustable) -- 400 mm.
• Formers of following diameters provided along with machine Dia. - 12, 16, 20, 24, 30, 32, 40, 50, 60, 80, 140, 175, 224, 280 mm
• Suitable re-bending tools supplied which will be incorporated in the machine.
• The up down of piston is through hand operated DC valve.
• The piston speed during down stroke is adjustable through manual operation of flow control valve.
