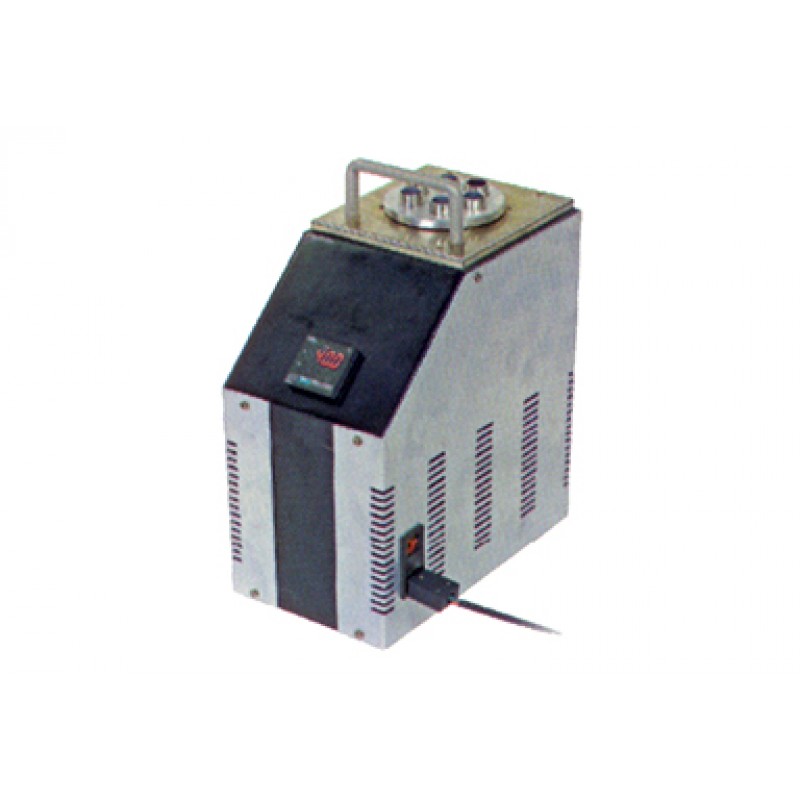

Portable Dry Block Bath And Liquid Bath

Liquid Bath

Model YSYS300

Device Type :

• Temperature Range : 50°C to 250°C
• Stability : 0.1°C
• Heating Rate : 10°C/Min
• Time to reach max Temp : 40 Mins
• Medium Heating : Silicon Oil
• Controlling Sensor : PT-100

Fixture:

• Tank Bore :90 mm Dia
• Tank Depth : 140 mm Depth
• Tank Equipment : Unscrewed fitted bore with multi sensor basket

General Data:

• Power Supply:230 VAC, 50/60 Hz
• Power Consumption: 1.5 KW
• Dimensions: 300x145x295 mm
• Weight: Approx. 10 KG

Controller & Display:

• Bath Temperature Control : Digital PID Controller with automatic super fine adjustment
• Computer Interface : RS 485
• Bath Temperature Display : 3½, Digit, 2 Line, LED ( 7 Segment )
• Display Range : 0°C to 300°C
• Temperature Resolution : 0.1°C

Accessories

Reference Standard:RTD, TPRT-300 PT-100, 1/3 DIN, 3 Point Calibration Certificate Carry Case, Operational Manual

Portable Dry Block Bath

Model YSYS650

Device Type:

• Temperature Range :50°C to 650°C
• Stability : 0.1°C
• Heating Rate : 15°C/Min
• Time to reach max Temp : 45 Mins
• Controlling Sensor : T/C "N" Type

CONTROLLER & DISPLAY:

• Bath Temperature Controller :Eurotherm UK PID Controller
• Bath Temperature Display : 3½, Digit, 2 Line, LED ( 7 Segment )
• Display Range : 0°C to 650°C
• Temperature Resolution : 0.1°C

Fixture:

• Insert Material :Brass
• Insert Construction : 36 mm Dia with 6 holes
• Insert Depth : 195 mm Depth

General Data:

• Power Supply:230 VAC, 50/60 Hz
• Power Consumption: 1 KW
• Dimensions: 190x290x330 mm
• Weight: Approx. 10 KG

Accessories

Reference Standard:T/C "N" Type, 3 Point Calibration Certificate Carry Case, Operational Manual
