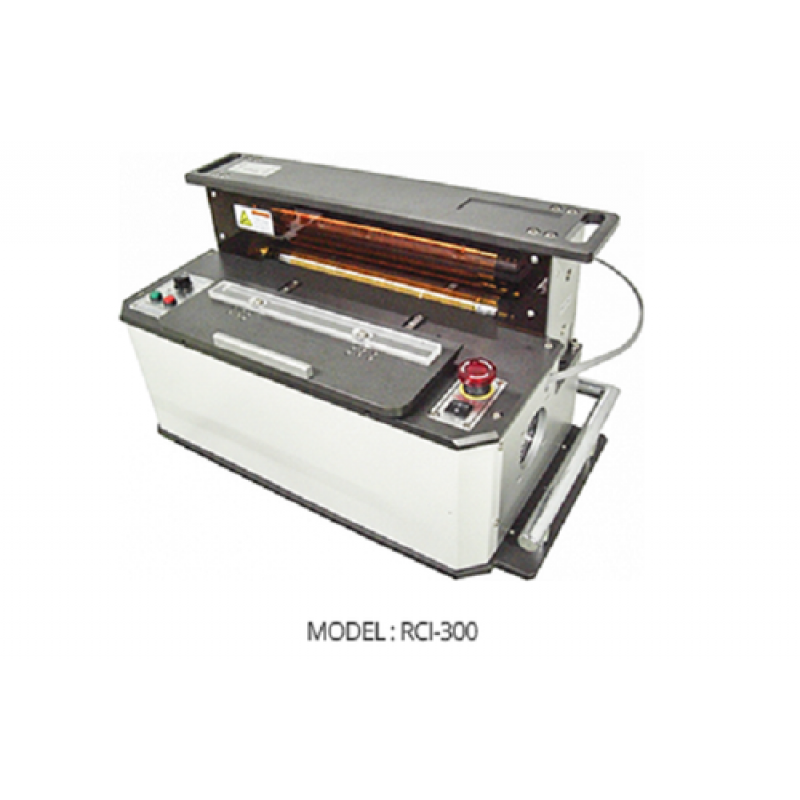

RCI 300 Rotary Slitter
Product Details :
Brand | Zeta
Corporation |
Power
Frequency | 50-60
Hz |
Voltage | 110-230V |
Weight | 86
kg |
Model
Name/Number | RCI-300 |
Cutting
Size | Less
than 0.1 mm |
Capacity | 720
cards/hour (Based on 5 second card feeding interval) |
Applicable
Card Length | Max.
320 mm |
Applicable
Card Width | Max.
100 mm |
Dimension | 682(L) x 430(W) x 370(H) mm |
Description:
- Rotary slitter is a robust cutting instrument which is designed to slit a wide range of rapid test materials, typically of finished cards/uncut sheets/glucose rows into final strip forms. This powerful unit equipped with rotary blade type features an ultra-fast cutting operation that yields high throughput as well as production efficiency.
- The simple yet highly efficient unit works by manually loading the card into the blades (card length and strip width determines blade count) for a swift slitting action. At less than a second, the cut strips are discharged onto a collection tray or down the chute (optional) for quick and convenient collection into a bottle. The blade head can be easily removed and swapped for cutting different width size.
(does not apply to rcg-100)
features options :
Quality & Performance
- increased productivity: entire card is cut into strips instantly in one pass.
- solid construction with top quality components for durability.
- specially developed blade types for optimized cutting of different materials.
- specially coated blades for improved lifespan.
- built-in anti-static ionizer reduces strip sticking issue due to static cling.
Easy To Use
- simple operation and low maintenance provides for hasslefree usage.
- easy removal of blade head for different cutting requirement
- (rcg-100 excluded).
- convenient qc access: as the cut strips are uniformly spread out on the collection tray, defects in strips (improper dispense coating, gluing, length, etc. ) can easily be identified for removal.
Additional Information:
- Item Code: RCI-300
- Production Capacity: 100
- Delivery Time: 30 DAY
- Packaging Details: ROTARY SLITTER ( RCI-300)
