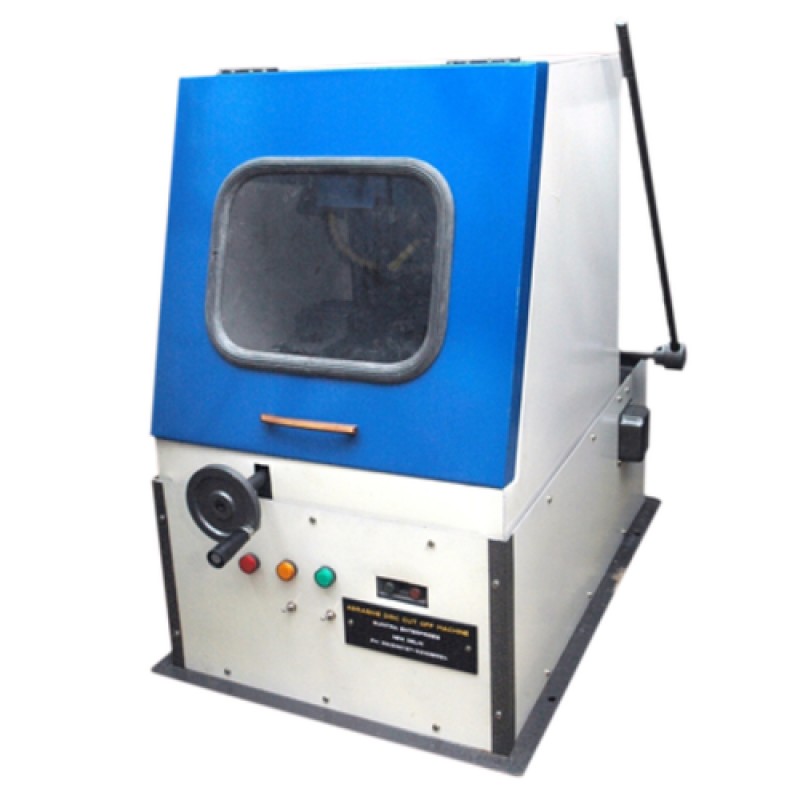

Abrasive Cutting Machine
Product Details :
Model Number/Name | FAC-100 |
Capacity | 10 - 150mm |
Brand | FTI |
Fine Testing Make Abrasive cutter is rugged, sturdy and designed to cut metallurgical samples to optimal quality consistently and safely. Cutting wheel spindle is connected with motor shaft by pulley and belt mechanism. The movement of cutting wheel towards the specimen is applied by handle xed with motor base pivot spindle and the cutter unit is balanced by springs for smooth downward movement.
Features :
- Large corrosion resistant coated bed fixed with lead screw attachment accommodates a variety of vices and clamps for holding samples of all shapes, both large and small.
- Large viewing window to monitor the cutting operation.
- Inside chamber is illuminated and the see-through hood is provided for monitoring the cutting operation.
- Coolant circulation is provided with suitable filtering arrangement.
Technical Specification :
- Machine is covered with powder coated sheets or stainless steel sheets.
- Specially designed Steel Vice to hold any kind of piece.
- Absolute minimal deformation, cool & burn-free sample production.
- Large and Effective coolant delivery with adjustable focused vains fitted on wheel guard.
- Coolant circulation System is provided with suitable filtering arrangement.
- Light attachments system is provided for clean and accurate cutting of samples.
- Large Viewing window to monitor the cutting operation.
- Heavy Duty motor is provided 3/5/7.5/10 HP 3 Phase as per your cutting needs.
- Cutting Operation By manual cut-off wheel in chop type procedure.
- Cutting Capacity 80-110 and More ( Depend on Material )
