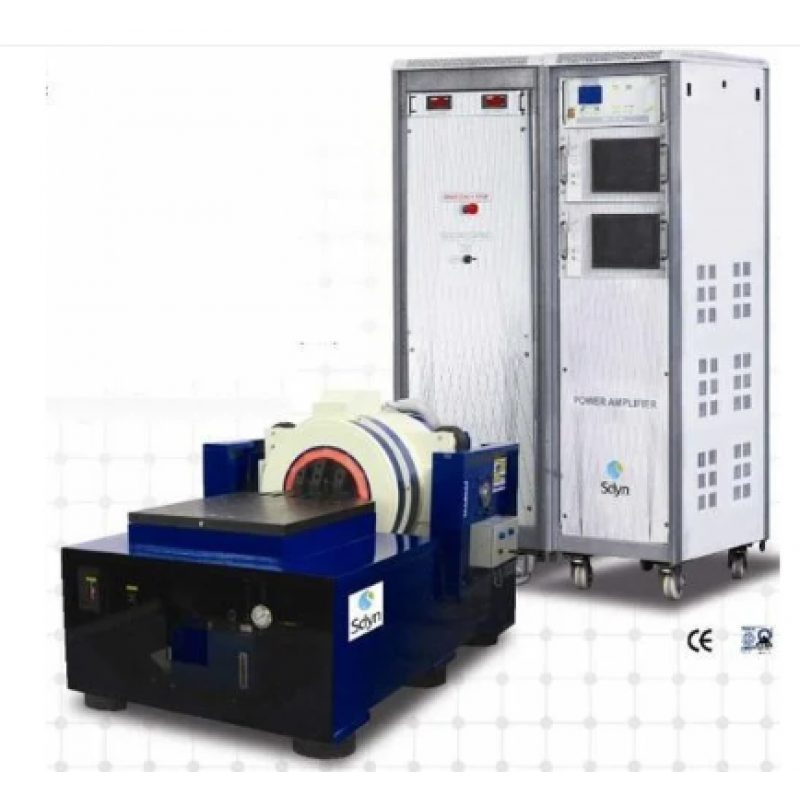

SEV 440 Electrodynamic Shaker
Product Details:

Armature Diameter	440mm
Axial Resonance	2100Hz
Moving element mass	50 kg
Internal load capability	550 kg
Suspension axial stiffness	15 kg /mm
Suspension cross axial stiffness	500 kg/mm

Technical Specification:

System Performance :
SEV 440 Shaker, DSA Amplifier	SEV 440-DSA 48K
Armature Diameter	440mm
Sine force (peak)	4000Kgf (8800lbf, 40kN)
Random force (rms)	4000Kgf (8800lbf, 40kN)
Shock Force	8000Kgf (17600lbf, 80kN)
Acceleration (sine)	80g
Velocity (sine peak)	1.8m/sec
Displacement	51mm (2 inch), optional 76mm
Axial Resonance	2100Hz
Useful Frequency range	DC to 2400Hz
Safety Compliance	System complies and marks to the international safety requirement WRT CE
Protection Interlocks	Mains input over & under Voltage, Over Current, Loss of input phase, Over Temperature amplifier & shaker, Cooling flow, Field fail, user safety interlock if specifically required by customer
