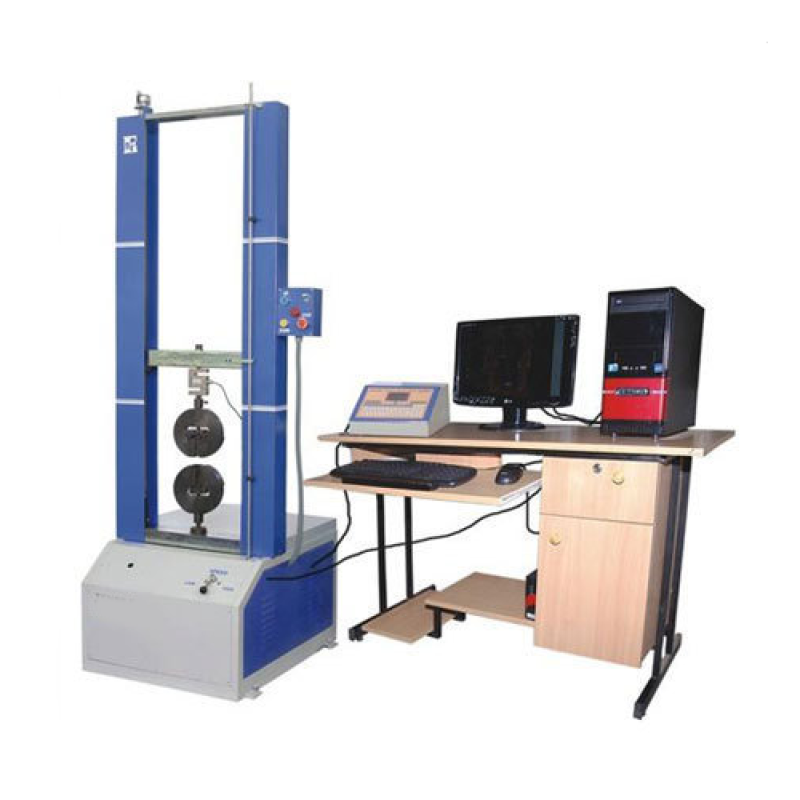

Computerized Tensile Testing Machine
Product Details :
Grade | Semi-Automatic |
Capacity (kg) | 5000 |
Accuracy (%) | 0.01 |
PC Connectivity | Yes |
Load Capacity (kN) | 50 |
Automation Grade | Semi-Automatic |
Condition | New |
Brand | Fine Testing |
Model No. | TFT-C |
Software Feature :
- Latest Windows based, Users friendly, Single form Fine Tensile Software.
- Fully automatic, on screen calculations based on the delivered data.
- Automatic Data capture, storage & graphic display.
- Data is stored Batch wise and specimen wise. User can generate Batch report.
- Recording, storage & retrieval of results & details.
- Reports are programmable. User can select 2 graphs in report.
- Build in facility for printing of test results and the two graphs.
- Graphs are programmable
- Load measurement by load cell.
- Over Load & Over travel safety.
- On line display of Load, Elongation & two Graphs are simultaneously displayed
- Tare load & reset elongation facilities available. Selectable units like N, KN, Kgf, lbf, Ozf, inch, mm,cm etc
- Fully automatic on screen calculations like UTS, YS, Proof stress, etc.
- Electronic Extensometer (Optional) is available for proof stress evaluation.
- It is possible to use a number of load cells, say one to four, to cover much wider range of load, to suit the application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
- Standard load resolution is with 25,000 counts Standard displacement optional displacement resolution 0.01 at extra cost
- Various Models – Maximum Capacity from 200 N to 50 KN.
- Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
