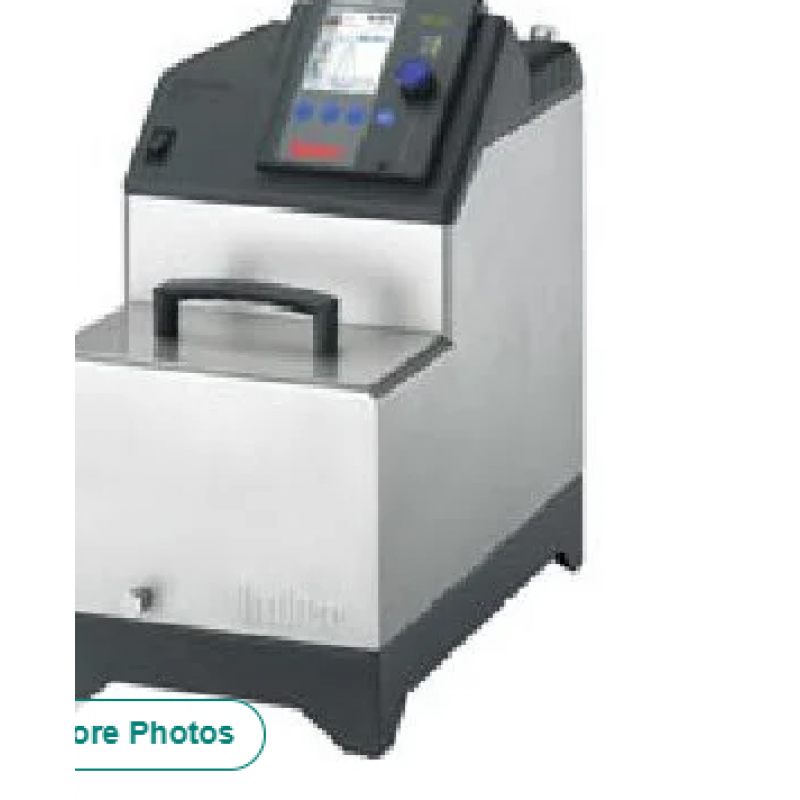

Unichiller With CC-Pilot
Product Details:
The tower models offer power with small footprints. These models are fitted with the exchangeable Compatible Control CC-Pilot, and are used in both research and production, the range of cooling powers available is from 1,6 to 100 kW.
Features:
Space saving tower design: small dimensions, high powers
Robust stainless steel construction
Reliable continuous operation with alarm and early warning functions
CC-Pilot with Plug & Play Technology
Splash protection of display and function keys
Large and bright TFT display
Digital level indicator
Simple to fill and drain
Simple to use EASY Control, with rotary input and function keys
All functions listed alphabetically
RS232 interface and connection for optional Com.G@te (NAMUR Standard)
Strong pumps for systems with large pressure drops
High flow rates for optimal heat transfer
External Pt100 sensor via 4-wire Lemo connector
5-Point calibration
IP-class to IEC EN 60529: 21
Options (factory fitted) – Heater and adjustable over temperature protection – VPC (Variable Pressure Control) with steplessly variable bypass and pressure sensor – Winter operation for use in low temperature external environments – Weather protection – Tropical versions for environmental temperature up to 45 °C. Stronger pumps Options for Heating andTemperatures to +100 °C With the exception of the two models UC006Tw and UC009Tw all units can be factory fitted with optional heating and independent over-temperature protection. Increasing the maximum working temperature to 100 °C and the temperature stability to +/-0,5
The new construction allows constant operation in ambient temperatures up to 40 °C. The water-cooled models are especially quiet and require little cooling water even at full cooling power. Despite the increasing costs of water the ROI is exceptionally short. All models with maximum pump pressure of 2,5 bar have an adjustable bypass and a pressure gauge.
