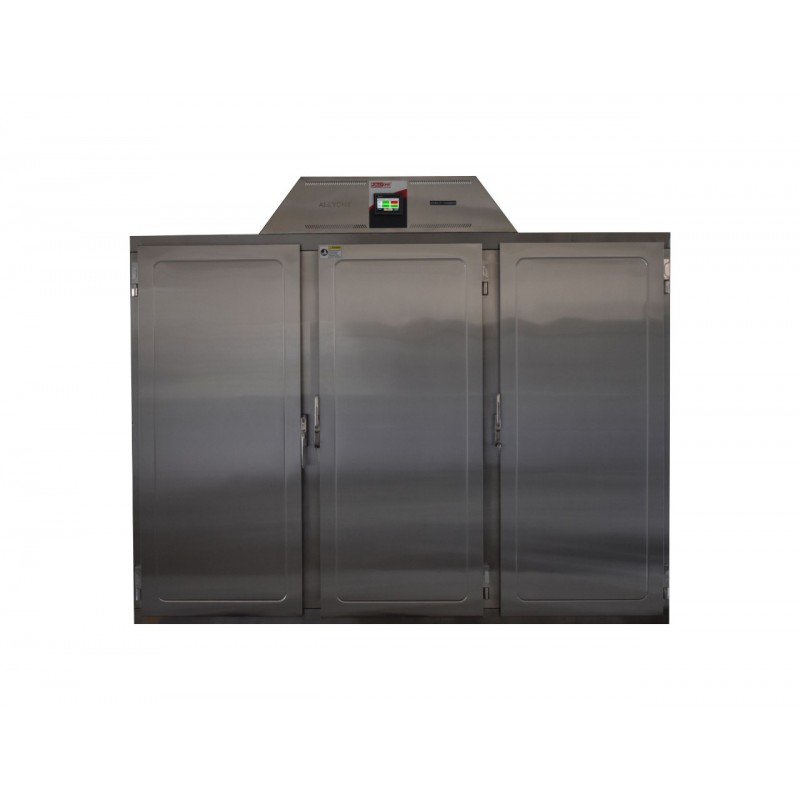

HIGH CAPACITY COLD CHAMBER / COOLING CABINET

Technical Specifications

Standard Chamber Features & Provisions:

Models	Cap. in liters	Internal size in mm	External size in mm	Tray Qty	Tray size in mm	Connected Load
AO/CC-150	1500	1600WX600DX1700H	1760WX1160DX2060H	8	660WX580DX30H	1.95 KW
AO/CC-200	2000	1600WX750DX1700H	1760WX1310DX2060H	8	660WX730DX30H	1.95 KW
AO/CC-250	2500	2400WX600DX1700H	2560WX1160DX2060H	12	635WX580DX30H	1.95 KW
AO/CC-300	3000	2400WX750DX1700H	2560WX1310DX2060H	12	635WX730DX30H	1.95 KW

Construction: PCGI/SS304/SS316 Tongue & Groove type panels with PUF Density of 40Kg/m3 with thickness of 80 mm.

Sample Storage:
Racks: Heavy Duty SS304 Frame secured strongly to chamber walls for strength.
Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations.
Door Doors: PUF Insulated External doors mounted with imported hinges & locks, Inner glass doors with latches. Door frame is secured with silicone rubber gasket on entire perimeter to ensure air tight, leak tight chamber.
Door Operation: Passcode protected door operation - from software & HMI
Control System:
Ergonomically designed Control Panel.
Ferrule printed wiring.
Advanced PLC Program with built in processor-based Auto Tuning.
4.3” HMI Color LED Display.
Built in Redundancy & Safety.
Advanced High Accuracy “Transmitter based sensors” with output of 4-20 mA.
Temperature Control:
Efficient, Reliable, Time tested & Trustworthy Refrigeration Design.
Built in redundancy with PLC based Auto Change Over during power outage &/or component failure
Optional Backup System: PLC based Auto Change Over Backup system for Refrigeration.
Safety: Dedicated Thermostats for all key points: Chamber High Temperature, Utility High Temperature
PLC Safety Cut Off for Temperature: Low, Lower & High safety cut off .

High-Capacity Cold Chambers:
Pharmaceutical & allied industries demands accurate standards to be followed when it comes to and storage environments.
Cold Chambers also known as Cooling Cabinets/ Pharma Refrigerators are an integral part of Stability studies within the Pharmaceutical & allied industries.
Storage in a controlled environment allows the indication of how safe products are to use and their optimum storage temperature.
Thus, manufacturers and distributors of pharmaceutical medicine, need to comply with regulations when it comes to the storage of, raw materials, Refrigerated Products, Batch samples & other samples, working standards, reference standards, vaccines, reagents,
and other critical items: such as Blood & Blood Products: Blood Bank Refrigerator (BBR)

Close monitoring of the temperature is mandatory as the nature of goods stored in Cooling Cabinet/ Cold Chamber is such that if temperature is not carefully maintained & monitored it may reach a critical point, so temperature fluctuations must be avoided at all costs.
Allyone has a long & rich experience of manufacturing state of the art Cooling Cabinets/ Cold chambers which are the most trustworthy equipment maintaining the exact set point, assuring absolute uniformity as they are meticulously designed & built for optimum performance keeping in mind environment friendly aspects: use of CFC Free gases & low on power consumption.
These chambers are unique offering by Allyone are offered for a niche requirement from a client, wherein the users require a bigger chamber than a stand alone chamber, but the requirement is not as big as to opt for a Walk In Chamber. Also, if there’s a space constraint these chambers are a perfect fit for such a requirement. This is a Golden Mean between the two!
The capacities we offer for our High Capacity Stand Alone Chambers are from 1500 lts (which is bigger than the max capacity of 1000 lt that we offer for a Stand Alone Chamber) to 3000 lts (which lesser than the min capacity of 4000 lt that we offer for a walk in chamber)
Some of the features are similar as of Stand Alone Type of chambers, such as it have heavy duty insulated doors : two or more-depending on the capacity, with imported hinges & locks for easy operation & inner glass door with latch to observe samples without disturbing the set condition, also the control panel with display is fixed at the top of chamber & can be easily visible & accessed.
