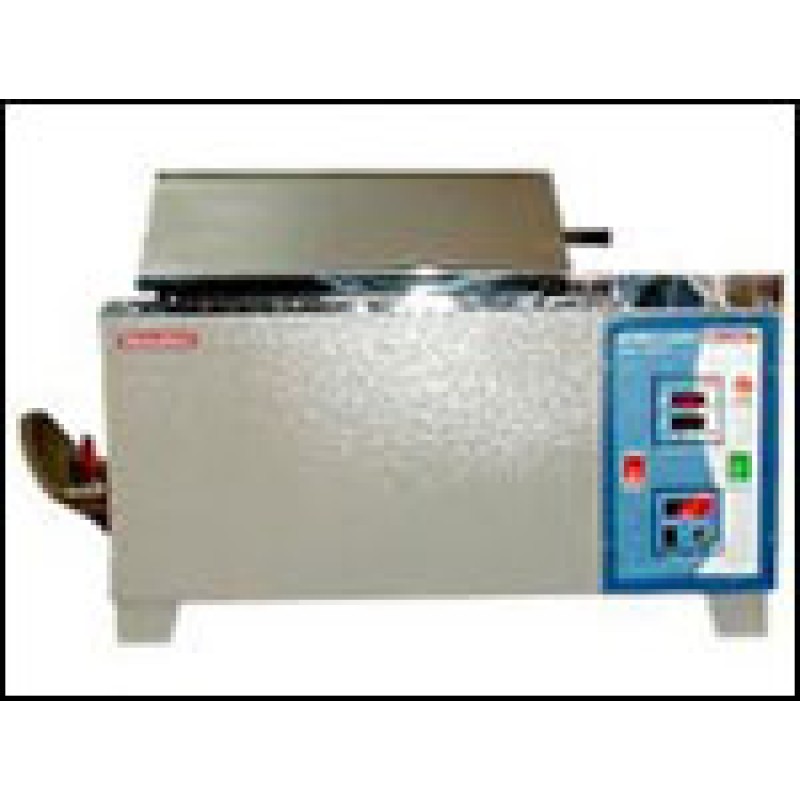

Water Bath Shaker

Product Details :

• The units are double walled with MS exterior body with powder coated and inner chamber of stainless steel of 304 G having effective insulation in between. The stainless steel bath has size of 355 mm (W) x 300 mm (D) x 165 mm (H). A special acrylic pyramid type

•  cover provided avoids evaporation of water and makes condensed water to fall back in the bath. A cock is provided to facilitate draining of Bath contents.
• Bath temperature upto 95°C controlled by Digital Temperature Indicator cum Controller with precise accuracy of ±1°C. Shaking speed range from 40 to 180 strokes per min. Stroke length 25 mm. the unit works on 230 Volts AC supply
•  The removable stainless steel tray houses lotus clamps for variety of flask capacities. Standard unit supplied with tray accommodating 12 flasks x 100 ml. while trays with the following capacity are available optionally.500 ml x 4 flasks

                    2000 ml x 1 flask

                    250 ml x 6 flasks

                    1000 ml x 2 flasks

                     Test Tube racks

•  Note: No discounts for Optional accessories

APPLICATION: BEST SUITED FOR DISTILLATION OF HIGH PURITY QUALITATIVE WATER

• The water distillate obtained from Quartz Double Distillation is beyond when compared with water distillate obtained from other types / method of distillation apparatus.


• Compact design with all contact of water with High Purity Electronic Grade Transparent Quartz only.
• The main unit has got a bottom boiler and top boiler with condenser, which can be easily separated (Demountable), for necessary cleaning or maintenance, if required. Bottom vent is provided in bottom boiler for general cleaning and maintenance.
• The main constitute of Quartz is SiO2 > 99.9%, which makes the apparatus highly resistant to any thermal shock, deverification and resistant to water and acids
• The electrical heaters are so designed, they do not come in contact with water because they are embedded inside a quartz tube, hence nullifying the possibility of metal contamination by the heaters.
• The given volume of water during Distillation process is very less, resulting in low heat loss, hence power is saved.
• The distillate obtained from this apparatus is PYROGEN FREE, it is also free from metal ions.
• All water connections can be given with threaded connecters.
• Demountable ball joint. Spiral heaters has better life span than tubular sheathed heater.
