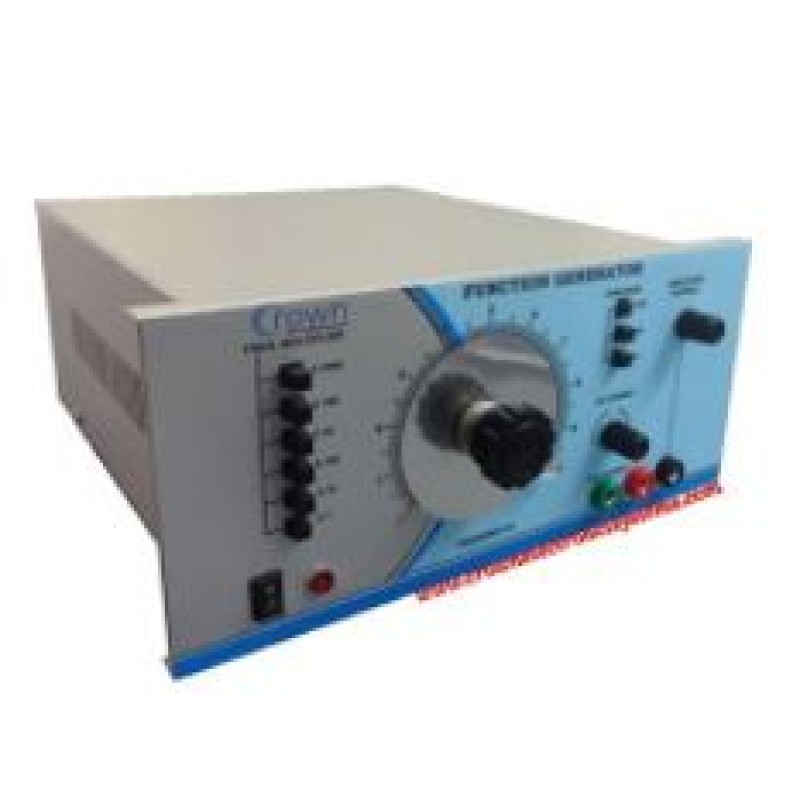

01Hz to 1MHz Function Generator
Product Description :
We are counted as one of the most reliable manufacturer and exporter for offering a wide range of Function Generator. This generator is designed at our modern manufacturing unit under the guidance of the experts by superior quality material in compliance with international quality standards. This electronic device is used to generate various electrical AC signals over a wide range of frequency. Our Function Generator is available for our clients at a feasible price.
Features of 01Hz to 1MHz Function Generator:
- Resistant to corrosion
- Smooth functionality
- High durability
Function Generator
- Function Generator 0.1Hz To 1MHz.
- It has a maximum 20V P/P amplitude.
- The output is protected against short circuit.
- It has a offset control provided to shift the base line of signal by + 10V.
- The equipment is used in Audio Electronics & other Laboratory & Research work.
- Function generator is capable of providing SINE , SQUARE , TRIANGLE Wave form.
- The DC coupled output provides square wave without any appreciable Sag at low frequency.
- The continuously variable DC offset control further enhance the versatility of the instrument.
- It has linear frequency scale very low Distortion & constant signal amplitude with the output signal symmetry about Zero.
Product Details:
Deal accuracy | +/- 5% of range |
Type | Analog |
Power supply | 230v ac +/- 10% |
Output amplitude | 0 - 20v p/p for all function |
Frequency | 0.1 hz to 1 mhz in six decade range |
Wave forms | Sine , square & triangle , ttl square wave (separate o / p) |
Square wave rise time | Less than 100 nano sec. At maximum amplitude |
Square wave duty cycle | 49% to 51% |
Sine wave distortion | Less than 1% from 100 hz to 100khz |
Output impedance | 600 ohm + 5% |
