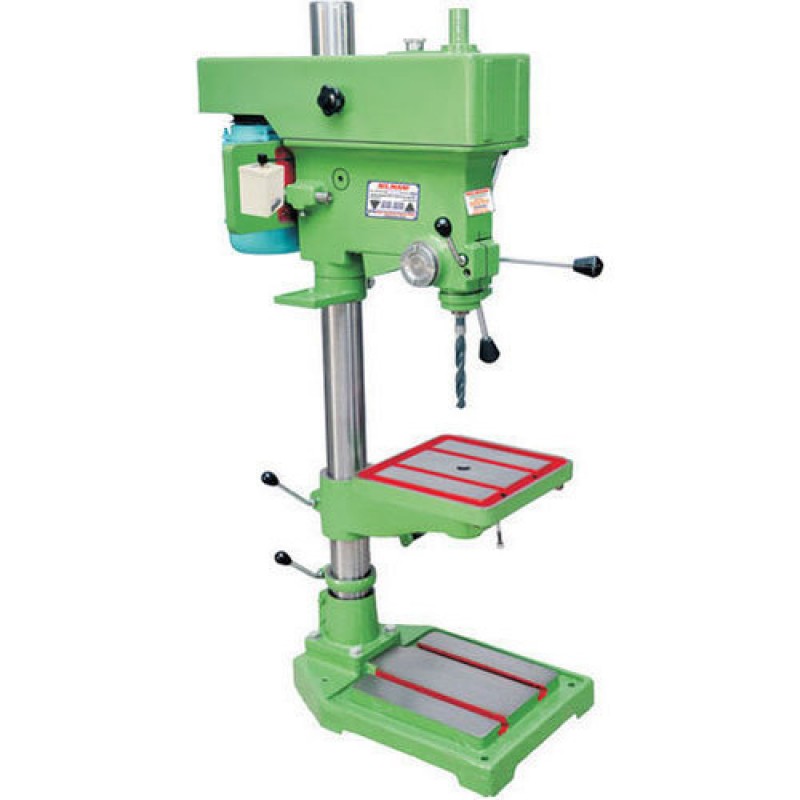

20mm Drilling Machine
Product Details :
Minimum Order Quantity | 1 Unit |
Drill Machine Capacity | Upto 20 mm |
Spindle Nose | M T - 2 |
Centre of spindle to column | 215 mm |
No Of Spindle Speed | 8 |
Table Size | 275x280 mm |
Base Size | 330x495 mm |
Distance Between Spindle to Base | 645 mm |
Distance Between Spindle to Table | 335 mm |
Overall Height With Guard | 1180 mm |
Column | 3 Feet |
Electrical Require | 1 Hp 1440 RPM |
Quill travel | 125 mm |
V belt | A-44 |
Range of spindle speed | 86/ 3365 RPM |
Column Diameter | 74 mm |
Weight of Machine | 96 kg |
