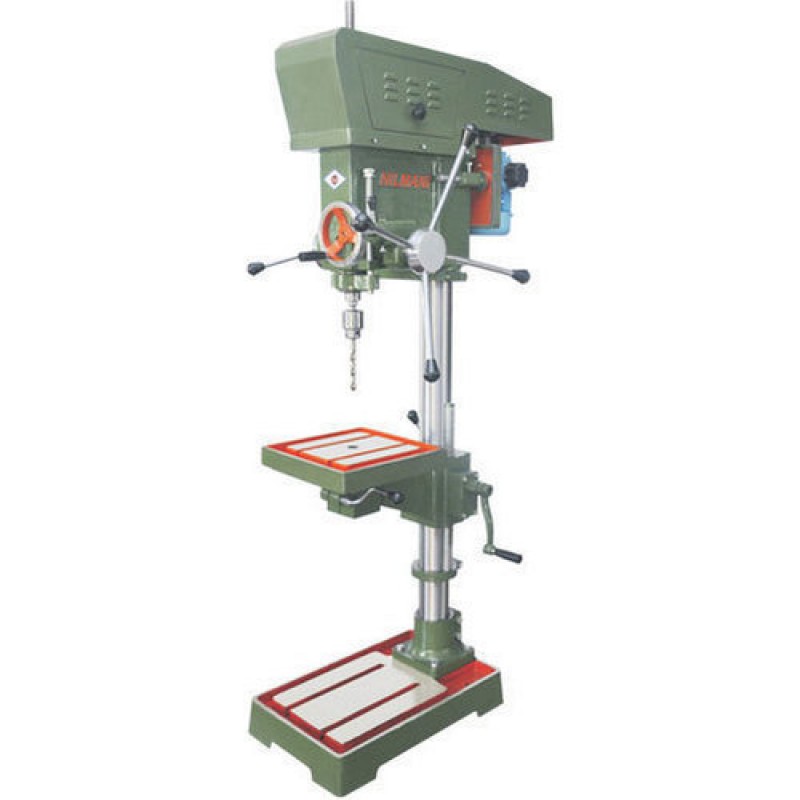

25mm Drilling Machine
Product Details :
Drill Machine Capacity | Upto 25 mm |
Spindle Nose | M T - 3 |
Centre of spindle to column | 246 mm |
Table Size | 325 x 325 mm |
Base Size | 580 x 365 mm |
Distance Between Spindle to Base | 970 mm |
Distance Between Spindle to Table | 530 mm |
Electrical Require | 1 HP 1440 RPM |
Quill travel | 175 mm |
V belt | B-52 |
Range of spindle speed | 130 / 2600 RPM |
Column Diameter | 87 mm |
Weight of Machine | 220 kg |
Column | 4.5 Feet |
We bring in for our clients 25mm Drilling Machine, which is incorporated with a column, bed and saddle. Moreover, our range of Machine is designed to meet the challenging demands of engineering and allied trade operations. Further, our range of machines is highly appreciated for the high operational output and matchless quality. Our drilling machine features are as follows.
Features :
- Spindal made of EN steel with 6 slot Ground Morse Tapper
- Double gear are from Graded C. I. material and Helical teeth provided
- Quill (Rem) From M. S. material and duly grind O. D. and I.D. also.
- Machine spindle gear rotates with in ball bearing provided in the pulley & double Gear.
- Other parts of casting are of standard grade.
