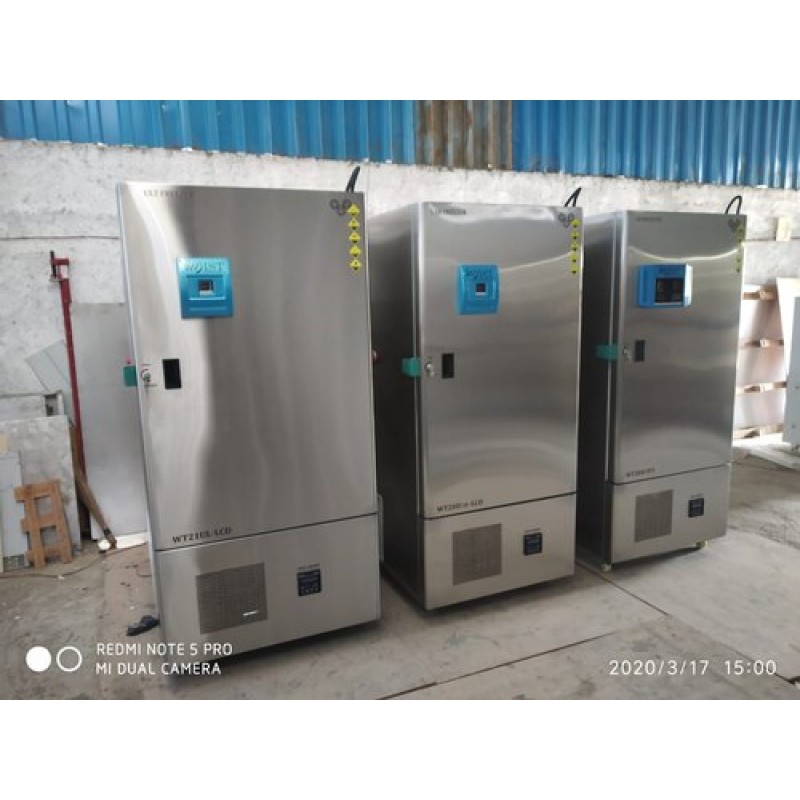

450 L Stability Chamber
Product Details :
Cooling | With Condenser |
Temperature Range | 10.0 Deg C to 60.0 deg C |
Capacity | 450 L |
Accuracy | 0.5 deg C |
Uniformity | +1 deg C |
Model | WT 16 SC-S/G |
Internal Size | 60 X 60 X 125 cm |
External Size | 80 X 130 X 175 cm |
Unit Weight | 275 kg |
- Double walled with 80mm PUF insulated modular panels with easy on-site assembly
- SS 304 Interior & Exterior either SS 304 or Pre Coated G. I.
- Stainless Steel Trays
- Observation window - 300 x 400 mm
- PVC strip curtain for reducing temperature leakages
- Heater line along the door to avoid condensation
- U-shaped SS tubular heaters
- Forced air circulation for uniform temperature
- Humidity is primarily controlled through the principles of Dew point control (for capacities>80000 L)
- CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
- System is made up of split type condenser unit in well-ventilated area to avoid throw of hot air in the room
- Stand by humidity system with booster humidification
- Complete Operations driven through PLC with data logging capacity of upto 1000 readings & email facility
- High speed Ethernet based communication
- All operations through a single 7" Color Touch Screen
- High quality imported make T/Rh combo sensor with 4-20 mA output
- Safety devices: Low & High temperature cut-off settable thermostats & high humidity cut-off settable hygrostat
- Audio/Visual alarms for deviations
- Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual Power supply: 415 volts 50 Hz main supply. Also available with 60 Hz Cycle.
OPTIONAL ACCESSORIES:
- 8 point. Temperature & Humidity Scanner
- Stand by Cooling System with auto switch over
- Door Access system (Numeric or Biometric)
- Mobile Alert system
