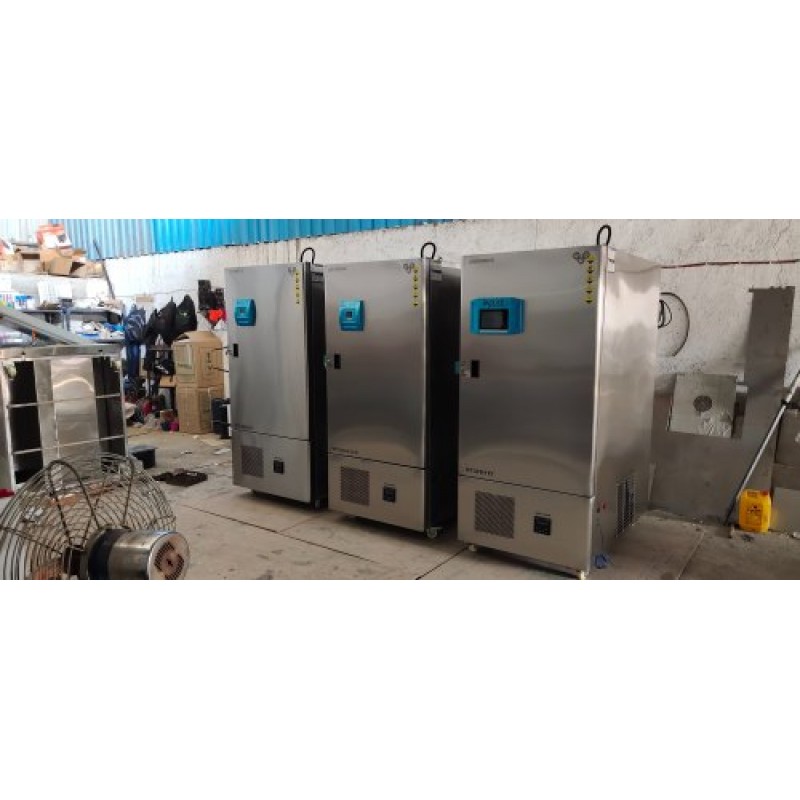

800 L Rectangular Stability Test Chamber
Product Details :
Brand | Wist |
Shape | Rectangular |
Capacity | 800 L |
Temperature Range | -86.0 deg C to 200.0 deg C |
Humidity Range | 45 Percent to 98 Percent RH |
Accuracy | 0.5 deg C |
Uniformity | +1 deg C |
Model | WT-28 EC-S/G |
Internal Size | 80 X 80 X 125 cm |
External Size | 100 X 130 X 210 cm |
Unit Weight | 325 kg |
- Double walled with PUF insulation.
- SS 304 Interior & Exterior either SS 304 or Mild Steel
- Puff insulation 100 mm thickness
- Stainless Steel trays
- TFT-touch screen 7’’ display PLC based controller
- Cascade refrigeration system single / double stage cooling
- PU wheels for easy movement
- Inner door with tightly seal S.S-door compartment
- CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coil & condenser
- Refrigerant R-404a & R-508b Eco- Friendly
- Complete operations driven through a single temperature controller with 2-line alphanumerical LCD display & data logging capacity of up to 1000 readings.
- High speed Ethernet based communication with Print facility
- High-quality PT-100 Temperature sensors
- Safety devices: Low temperature cut-off settable thermostat
- Audio/Visual alarms for deviations
- Recorder RS-232 & RS-485 Dot-Metrix facility
- 21 CFR PC software part 11 compliance USFDA.
- Complete with DQ, IQ, OQ, PQ & SOP & Maintenance Manual
OPTIONAL ACCESSORIES:
- 4 point. Temperature Scanner
- 8 point. Temperature Scanner
- Stand by Cooling System with auto switch over (TFT screen)
- Door Access system (Numeric or Biometric)
- Mobile Alert system
