Specification :
- Model – PMT/2000/200/H
- One piece, heavy duty and rigid bed made of high grade cast iron casting provided with strong ribs for rigidity and a large inverted prismatic guide ways and wide track for the table.
- Centre height: - 200 mm
- Admit between centre: - 2000 mm.
- Swing over table: - 390 mm.
- Max. Length to be ground: 2000 mm
- Max. diameter of the job: 390 mm
- Main Moveable slide is hydraulically operated by precision Hydraulic Cylinder.
- Work head having high precision four bearings having 1.5 hp 3 ph, A.C motor with imported 2 hp infinitely variable drive for variable speed of job.
- Work head speed: - 30 to 300 rpm infinitely variable.
- Work head Morse Taper: - MT –5.
- Tail stock Morse taper: - MT – 5.
- Wheel head having high precision imported P4 grade matched pair anti friction bearings of three pairs fitted in cartridge type hardened and ground housing having accuracy as per IS 2368.
- Grinding wheel size: - Ø 500 ´ 50 ´ 203 mm.
- Manual cross feed resolution: - 0.005 on radius.

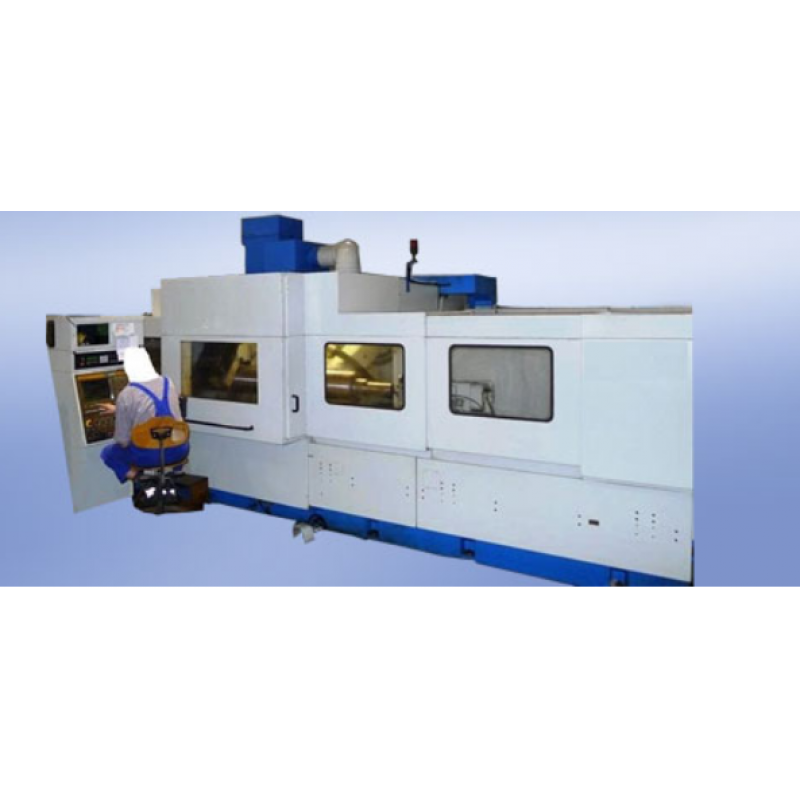

ABC - 2000 / 250 CH CNC Cylindrical Grinding Machine
