ALPHA PORT SQ

Product Details :

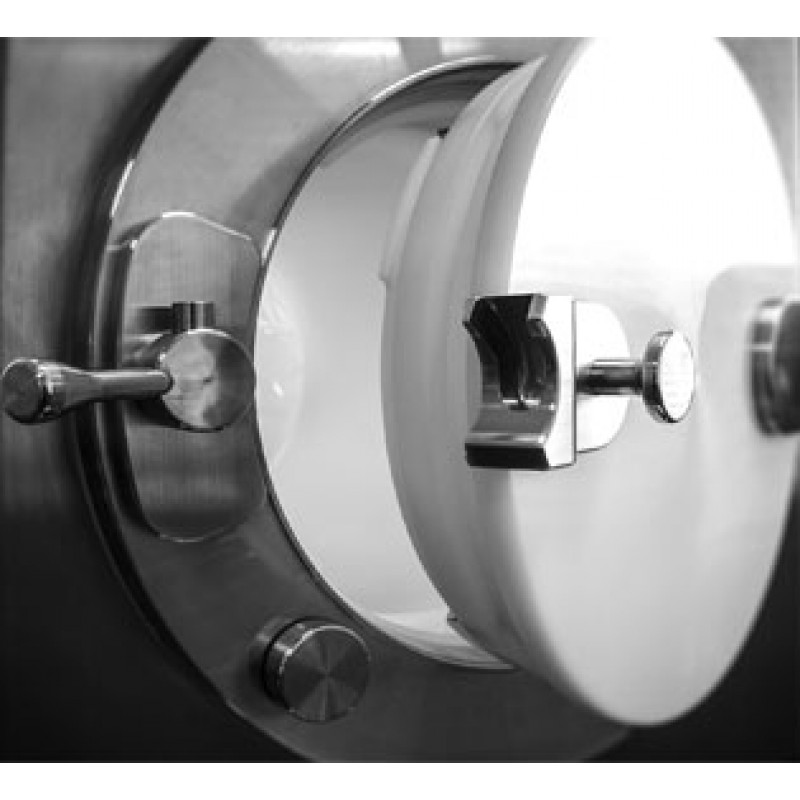

The castus alpha Port is fitted in the isolator system wall and serves as a transfer port for the contamination-free loading or unloading of components in or out of the isolator. Our patented castus Safety Interlock System (CSIS) prevents the improper operation of the lock and ensures a high personal and product protection. The door of the alpha Port can only be opened after the beta part has been docked correctly. The beta part can only be undocked after the alpha Port door has been closed.

When space at the workplace is limited, the alpha Port can be equipped with a removable door. After having opened the door by only 20°, it can be completely unhinged and placed in the isolator.

OPTIONS :

• Removable door
• Limit stop

ADVANTAGES OF THE LATEST GENERATION AT A GLANCE :

• Reduced moving parts and weight
• Complete CSIS ( castus safety interlock system ) is housed and sealed – patented safety lock
• Optimized for WIP
• Double sealed door

TECHNICAL DATA :

• Effective diameter: 190 – 460 mm
• Installation diameter: 268 – 537 mm
• Material alpha door: PE-HD, PE-EL, PTFE, 316L, Hastelloy® C-22.
• Main frame: 316L, Hastelloy® C-22
• Seal: Silicone or EPDM
• System: CSIS ( castus safety interlock system ) – patented safety lock
