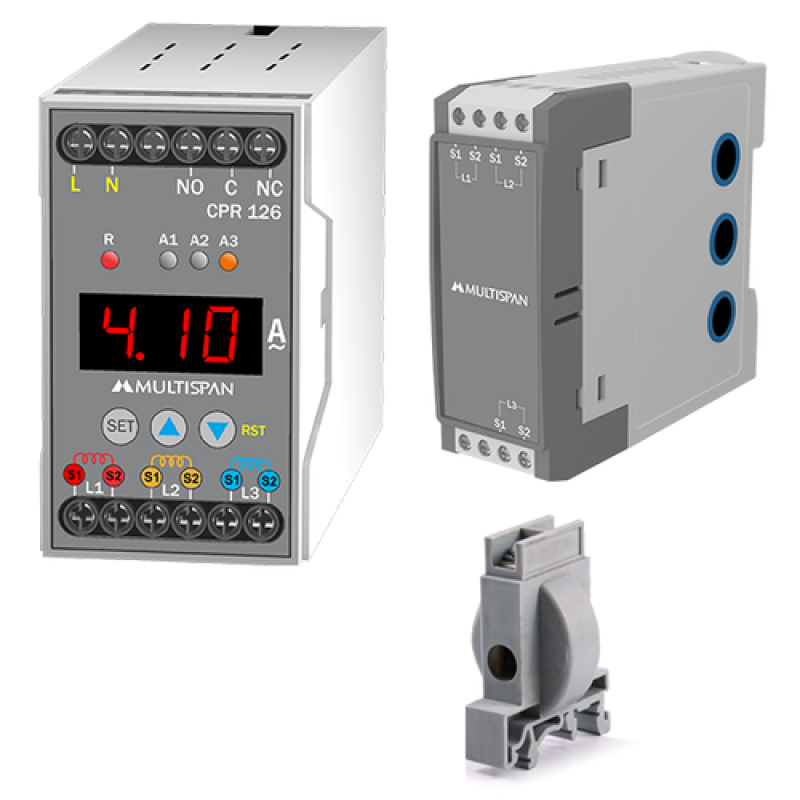

Current Protection Relay

Current Protection Relay

Product Details :

BrandMultispan
Model Name/NumberCPR-126
Country of OriginMade in India
Operating Current(Secondary CT))0.5 to 5 Amp (Direct)
Primary CT5 to 999 Amp CT Selectable
Dimension75 (H) X 45 (W) X 110 (D) mm


Protection on Parameter

Overload, Underload, Current Asymmetry, Single Phase Prevention

Display

7 seg,3 digits 0.4” RED LED

Time Ranges

Trip Delay Time  : 0-999 sec , Power ON Delay: 0-99 sec, Recovery Time : 0-99 sec,

Initial Time Delay : 0-99 sec

Accuracy

Class 1.0

Output Contact

1 C/O (NO-C-NC)

Output Rating

Relay 10A,230VAC (Resistive Load)

Operating Current

(Secondary CT)

0.5 to 5 Amp (Direct)

Primary CT

5 to 999 Amp CT Selectable

Auxiliary Supply

100-270V AC,50/60 Hz

Mounting Type

DIN Rail Mount
