Abel Flash Point Tester:

ABA 4

• Automatic Abel closed-cup flash point tester, compliant to ISO 13736 and more
• Flash point applications of jet fuels, solvents, chemicals, and more
• Two cooling systems, liquid or air, with Peltier elements available
• Two ignition systems, electric and gas, included with each unit

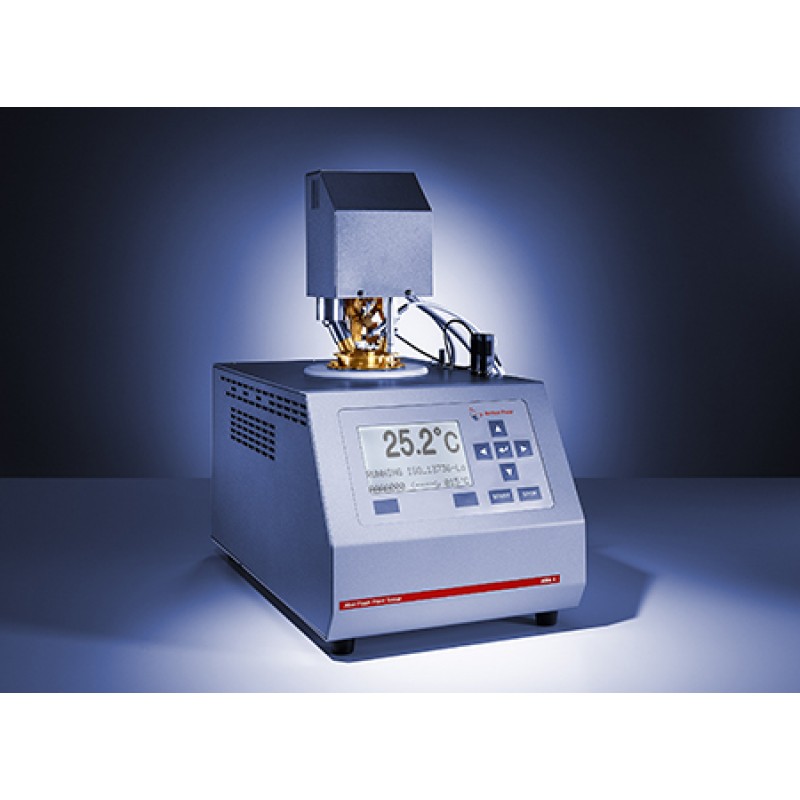

The automatic Abel closed-cup tester measures the flash point, the lowest temperature at which the vapors of a sample ignite upon the application of an ignition source. The tester can also be used to detect the ability of a sample to yield flammable vapors when maintained at an equilibrium temperature by the flash/no flash method.

ABA 4 is suitable for flash point applications of jet fuels, solvents, chemicals, etc.

Key features :

Benefits at a Glance

• Two cooling systems with Peltier elements according to the new ISO 13736 standard: an economical air-cooled model and a low-temperature version with external water cooling
• The two ignition systems in each unit give you the flexibility to work with  an electric or gas igniter: if the gas ignition is used, the electric igniter will automatically relight the gas flame during the test, if necessary

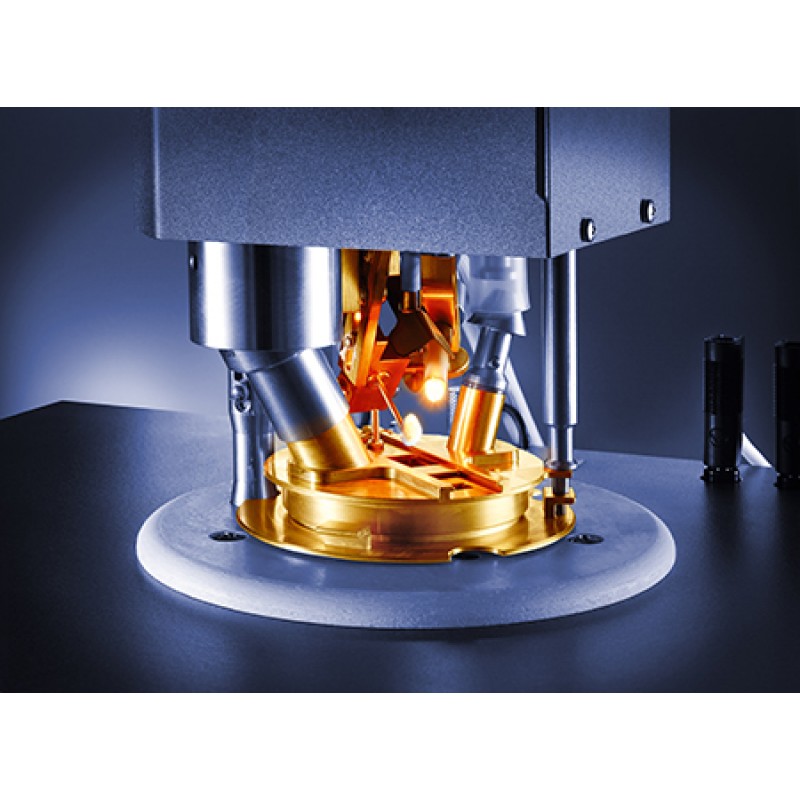

• The One-Twist swivel-around multi-function head guarantees the safe and easy one-hand connection of all sensors and actuators such as the shutter release, stirrer, igniter and detector contacts
• An extended measuring range up to 110 °C enables you to go beyond the conventional scope of the Abel method

Convenient Operation

• Test initiation by pre-installed standard test methods and ability to customize methods by user-defined programs
• Outside flame sensors increase the system’s safety, especially for work with samples that have no conventional flash point but burn outside the test cup (e.g. due to flame-inhibiting components)
• Splashproof touch-key panel with large LCD

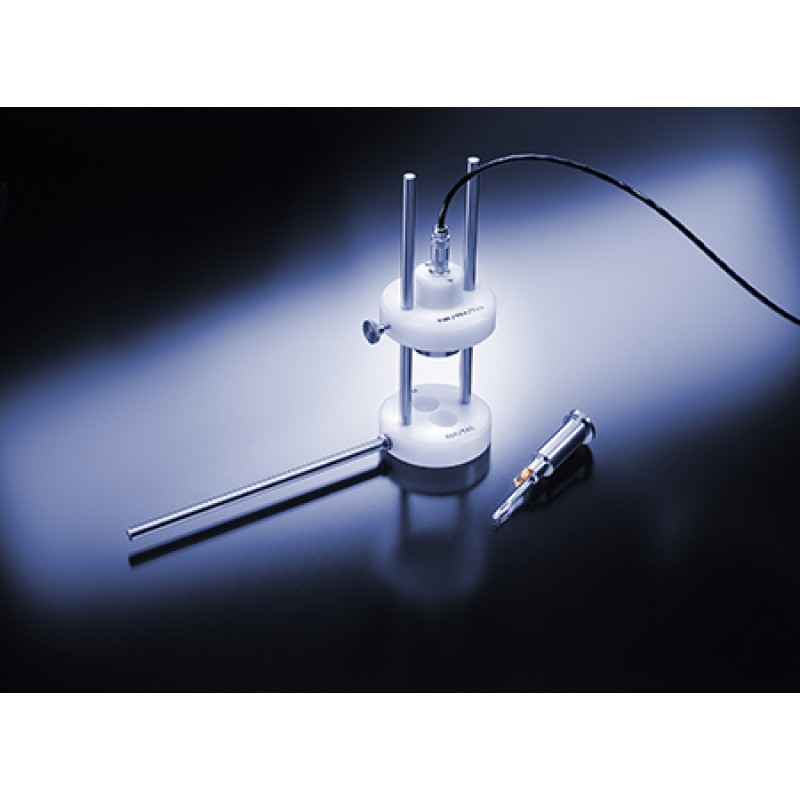

• A multi-detector combines the flash point detector and the temperature probe in a solid housing with a perfectly adjusted immersion depth
• A probe verification program checks the proper functioning of the temperature probe and allows a bias adjustment by using a special calibration kit (optional)

Customized User Flexibility

• PC-software FPPNet (optional) for convenient remote handling and test data storage
• Insulation hood (optional) to protect the cover and shutter assembly from icing during low-temperature flash point tests
• Abel-Pensky test insert (optional)
• Calibration set (optional)
• Stainless steel or small-volume sample cup (optional)
