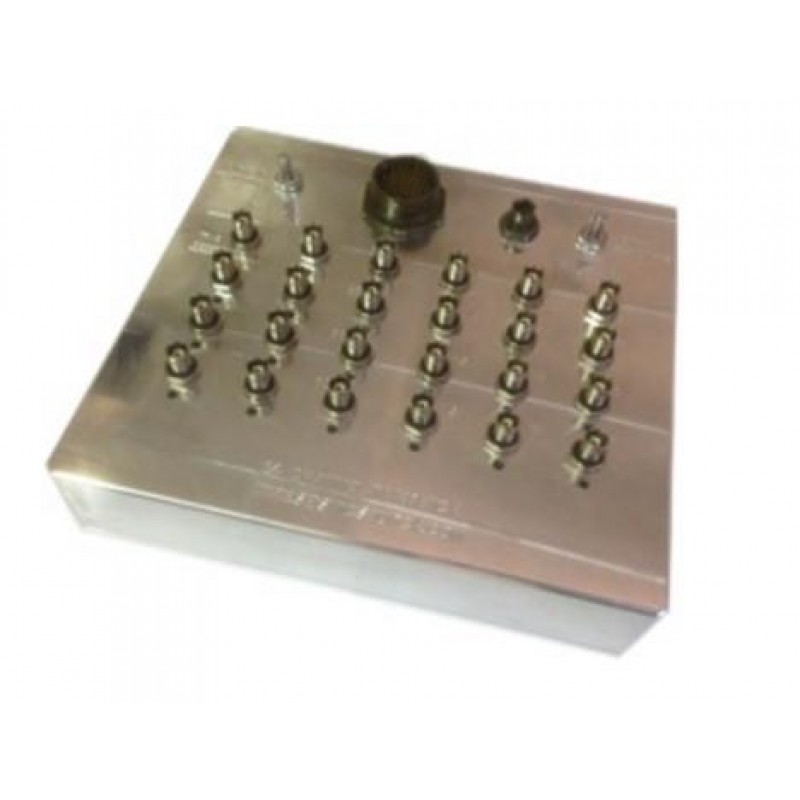

Accelerometer Array - Vibrator QC System

Product Details :

• 24-channel input interface for DAQLink-III acquisition system (23 for accelerometers and one for True Reference)
• Computes accelerometer weighted sum using input array

• Controlled state of current supplies for external accelerometers

• LED status indication of every accelerometer input
• Differential outputs to the acquisition system

• Input channel impedance of 1 Mohm

• Bandwidth: 0.1 - 5000 Hz

• Crosstalk: -100 dB

• Phase tolerance of channels: ±0.2 deg

• 10 mA current supply for every accelerometer channel

• Max input signal: ±10 V p-p (True Reference), ±2.8 V p-p (Accelerometer input)

• Power supply: 9 - 18 V
