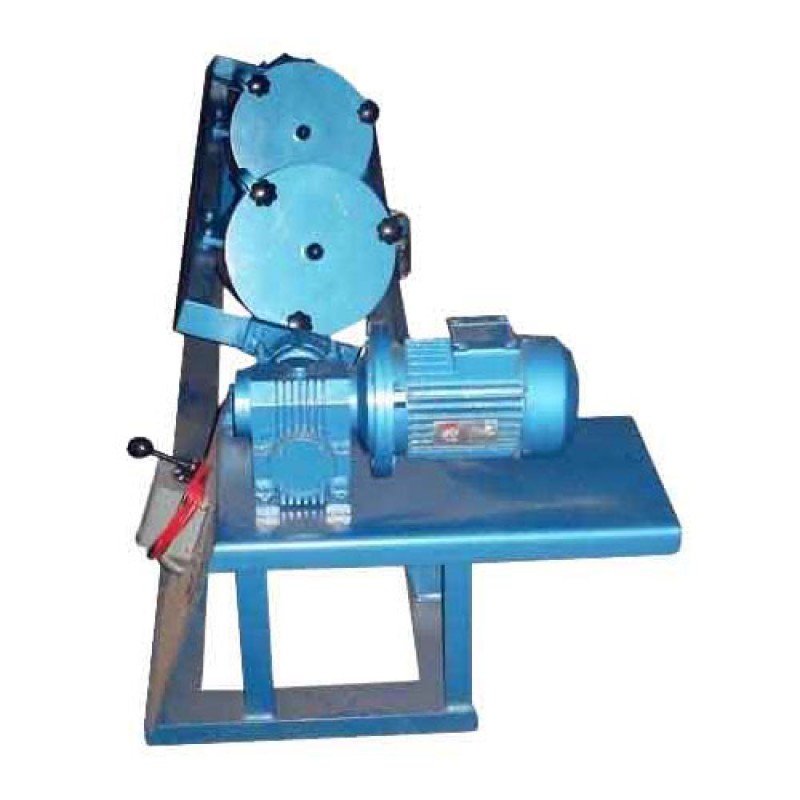

Devel Attrition Tester

Model No.: SMEW-0136

Standards : ASTM D2-33 & IS 2386 (PART IV)

Specification : It consists of two hollow cylinders closed at one end and provided with Fitting covers at the either end. These cylinders are mounted an a shaft at angle of 300 with the axis of rotation of the shaft. The shaft rotates at 30-33 RPM. Through a reduction gear operated by a motor and is provided with a revolution counter. Complete with Abrasive Charge consisting of 12 Nos. Hardened steel Balls of 48mm dia. Suitable for operation on 440 Volts, Three Phase, 50 Cycles, A.C. supply.

Note : Option of Digital Preset Counter can be provided at an Extra Cost
