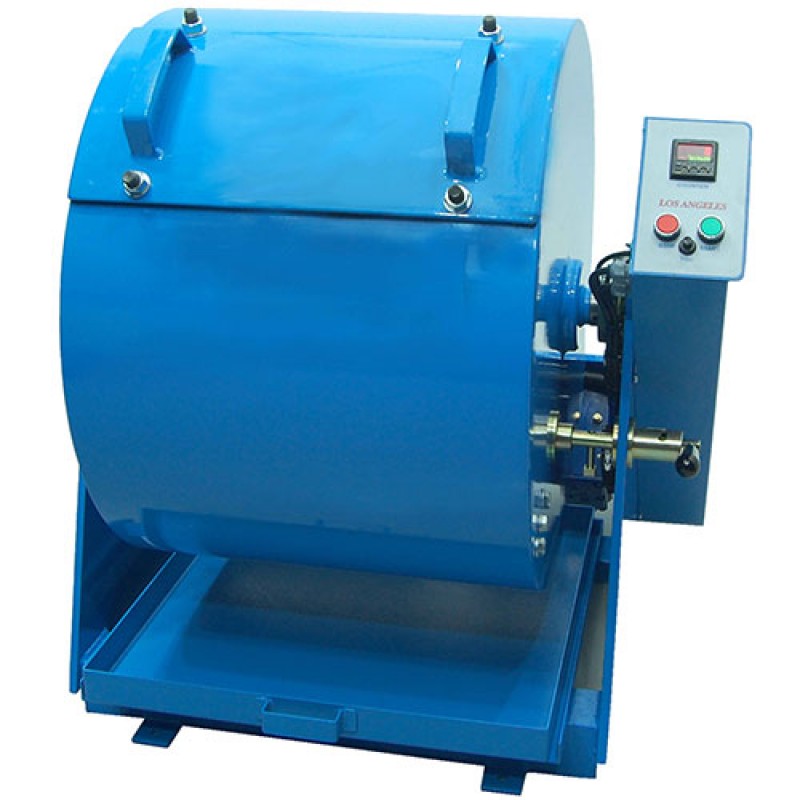

Digital Los Angles Abrasion Testing Machine

Model No.: SMEW-0146

Standards: EN 1097-2, 12697-17, 13450; ASTM C131, C535; AASHTO T96

Specification: The machine consists of an electronic control unit and a rolled steel drum having an inside diameter of 711 mm and internal length of 508 mm. The drum is rotated at a speed of 31-33 r.p.m. The internal shelf provided with the machine confirms to ASTM, AASHTO and EN standards. The machine is equipped with an automatic counter, when the preset revolution count is reached, the machine will stop automatically. The drum is equipped with an interlock device which allows the operator to lock the drum into position
