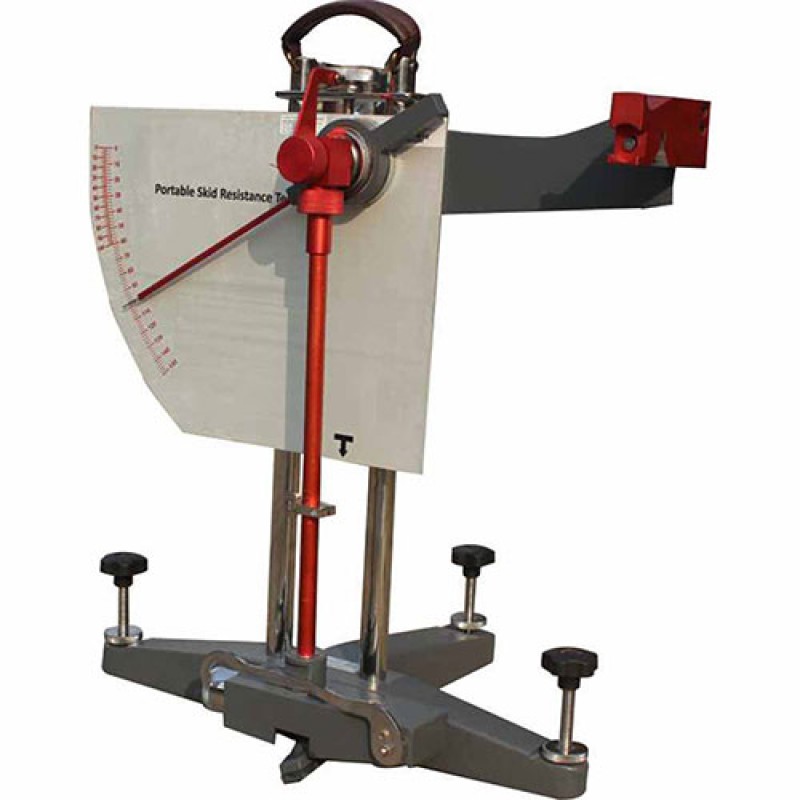

Skid Resistance And Friction Tester Standard

Model No.: SMEW-0144

Standards: EN 13036-4 (Also Conforming to EN 1097-8, ASTM E103)

Specification: Used for the measurement of surface friction properties, the apparatus is suitable for both site and laboratory applications and for polished stone value tests using curved specimens from accelerated polishing tests. The equipment is supplied with:

• Additional scale for tests on polished stone value specimens
• 6 rubber sliders for site use, complete with conformity certificate
• Thermometer -10 to +110°c for surface temperature measurement
• 1 litre washing bottle, for surface wetting
• Tool set with case, for machine assembly
• Rule for sliding length verification
• Rocker weight : 1500 +/- 30 g
• Distance between rocking centre & center of gravity : 410 +/- 5 mm
• Positive static pressure on pavement : 22.2 +/-0.5 kn
• 6 rubber slider and base plate dimension (mm) : 700×360×70
