Skid Resistance
Product Details:

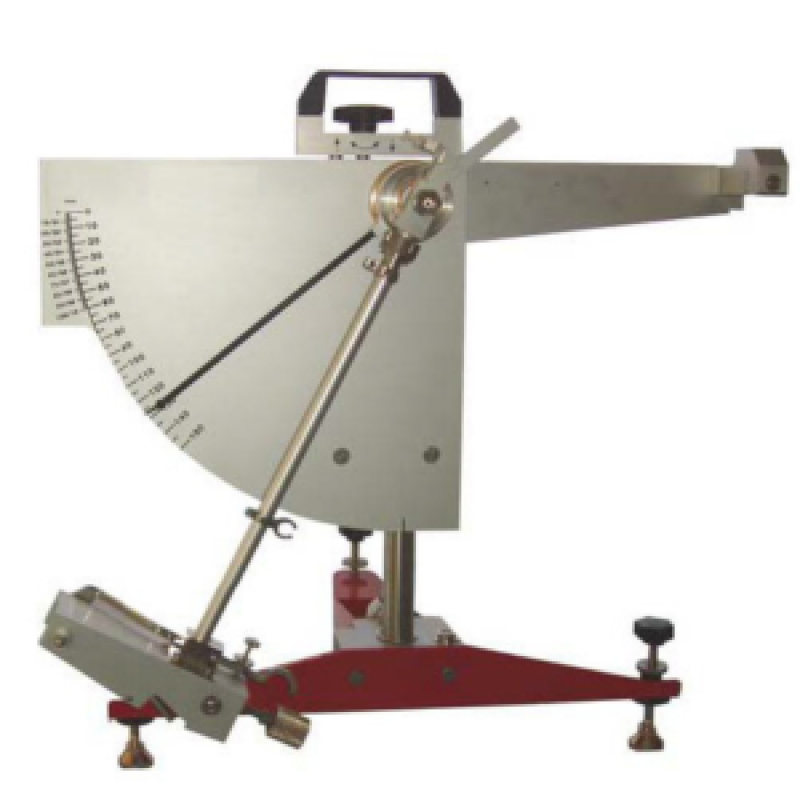

Skid Resistance apparatus is used to measure the antiskid performance of high-grade roads ad airport pavement both in the lab ad in-situ. The apparatus consists of a spring-loaded rubber slider mounted on a pendulum arm. The arm can be adjusted vertically from a rigid support column.
SPECIFICATION
- Rocker weight : 1500 +/- 30 g
- Distance between rocking center & center of gravity: 410 +/- 5 mm
- Positive static pressure on the pavement: 22.2 +/-0.5 kn
6 rubber slider and base plate dimension (mm): 700×360×70
Accessories
The equipment is supplied with:
- Additional scale for tests on polished stone value specimens
- 6 rubber sliders for site use, complete with conformity certificate
- Thermometer -10 to +110°c for surface temperature measurement
- 1-liter washing bottle, for surface wetting
- Toolset with the case, for machine assembly
- The rule for sliding length verification
