Specific Gravity And Water Absorption Of Aggregates

Model No.: SMEW-0132

Standards : IS 2386 (PART III) & BS 812

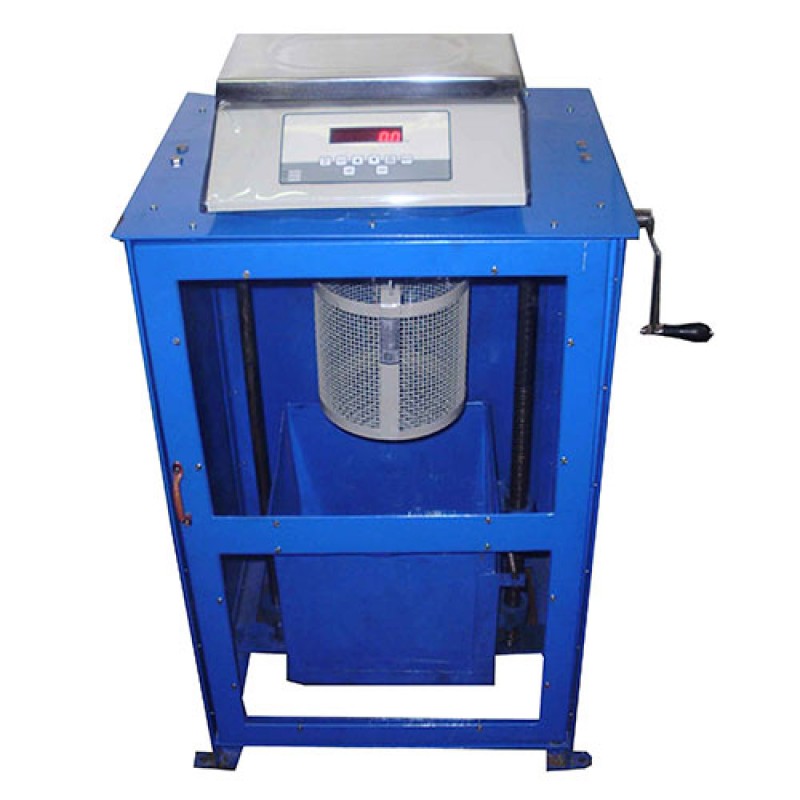

Specification : The buoyancy balance system consists of a rigid support frame, incorporating a water tank mounted on a platform. A mechanical lifting device is used to raise the water tank through the frame height immersing the specimen suspended below the balance. The balance supplied may also be used as a standard weighing device, thus providing a versatile and comprehensive weighing system in the laboratory

The outfit comprises of :

• Electronic balance, capacity 5 kg. Least Count 0.1gm, provision is made in this balance to suspend density basket under material pan. This balance ismounted on an angle iron frame stand. 1 No!
• Density basket. 1 No.!
• Air tight container to suspend density basket. 1 No.!
• GI Tray of area not less than 650 cm sq. 1 No.!
• Absorbent cloths 75cm x 45cm. 2 Nos.!
