Automated Tap Density Analyzers:
Autotap
Automated tap density analyzers

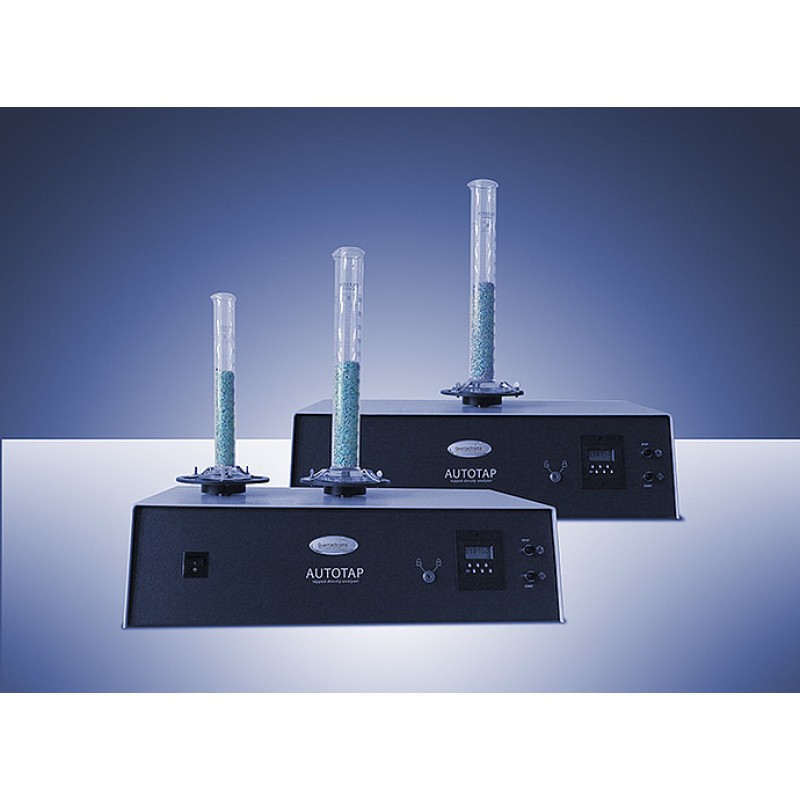

The Autotap and Dual Autotap tapped density analyzers for powders are simple to use, automated devices which comply with a large number of internationally recognized standard methods. They provide a high level of test method control with a user-selectable, lockable number of taps. Tapping rate and drop height are fixed to provide consistent results from sample to sample. A large range of sample sizes can be accommodated with the use of a number of different graduated cylinder sizes. Single and dual station designs are available to fit your lab’s throughput needs.
Technical specifications :
Specifications | ||
---|---|---|
Model | Autotap | Dual Autotap 2 |
Stations | 1 | 2 |
Graduated cylinders | 1 x 250 cm³ | 2 x 250 cm³ |
Graduated cylinder sizes | 5 cm³ to 500 cm3 (standard) 1000 cm³ (with adapter plate) | |
Drop height | 3 mm (0.125 in) | |
Tapping rate | 260 per min. | |
Platform rotation | Automatic | |
Physical | ||
Dimensions (H x W x D) | 175 mm* x 540 mm x 280 mm (7 in* x 21 in x 11 in) *excluding cylinders | |
Weight | 11 kg (24 lbs) | 14 kg (31 lbs) |
