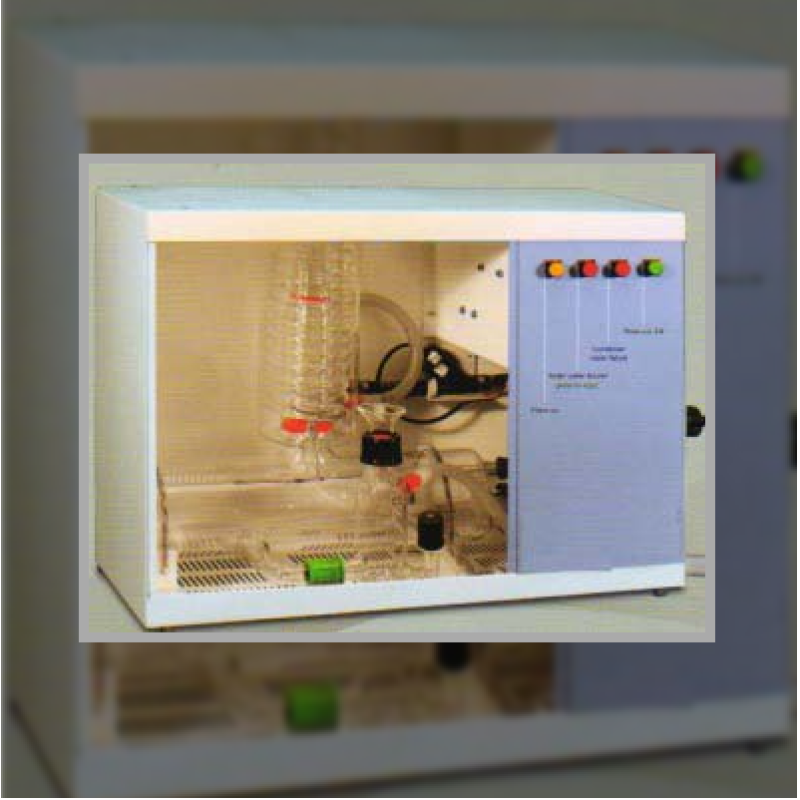

Automatic- Cabinet Water Still (Glass / Quartz)

 GENIST now presents GI Distil series of Automatic Cabinet Water Stills for trouble free distillation in the laboratory. The GI Distil provides Ultra high purity water for demanding applications in the laboratory / tissue culture work. The GI Distil stills incorporates several safety devices for automatic operation for use in Hospitals and labs. The Still Incorporate all Electrical Safety standards IEC61010

High quality, low temperature output

All GI Distil stills are manufactured either from high quality PYREX ®Brand Borosilicate Glass incorporating a high quality double coil condenser and boiler system, or using GE 214 Semiconductor Grade Quartz for the double coil condenser and boiler system combined with a silica glass sheathed heating element which provides a high quality Pyrogen free output with conductivity <0.4 μS/cm for Quartz distillation models.

 Features:

Flow Control Safety: Enables you to use GI-Distil under low pressure sources, a condition in which other stills can’t operate.

A Gate Valve: To prevent wastage of cooling water in the event of power failure

Level Sensor: A level sensor is incorporated for the safety of boiler in the event of no water in the boiler.

Reservoir Level Sensor: Incorporated for automatic operation of the still

Details : We are offering automatic water still cabinet model

 GI-DISTIL series in glass

• GI-2S (2 ltrs/hr of single distillation)
• GI-2D (2 ltrs/hr of double distillation)
• GI-4S (4 ltrs/hr of single distillation)
• GI-4D (4 ltrs/hr of double distillation)
• GI-8S (8 ltrs/hr of single distillation)
• GI-8D (8 ltrs/hr of double distillation)

    EQUIPMENT : CABINET STILL (BOROSILICATE GLASS : Boiler and Condenser)

Models	Approx Output ltrs/hr	pH (Approx)	Minimum Cooling W ater Requirment	Conductivity µS/cm	Power
GI-2S	2 Single Distilled	5.5 - 6.0	1.5 Ltr / min	1.0 - 2.0	230V, 50-60Hz Single Phase,1.6KW
GI-2D	2 Double Distilled	6.0 - 7.0	3 Ltr / min	0.8 - 1.0	230V, 50-60Hz Single Phase, 3KW
GI-4S	4 Single Distilled	5.5 - 6.0	2 Ltr / min	1.0 - 2.0	230V, 50-60Hz Single Phase, 3KW
GI-4D	4 Double Distilled	6.0 - 7.0	4 Ltr / min	0.8 - 1.0	230V, 50-60Hz Two Phase, 6KW
GI-8S	8 Single Distilled	5.5 - 6.0	4 Ltr / min	1.0 - 2.0	230V, 50-60Hz Two Phase, 6KW
GI-8D	8 Double Distilled		8 Ltr / min	0.8 - 1.0	230V, 50-60Hz 3 Phase, 12KW



  EQUIPMENT : CABINET STILL (QUARTZ : Boiler and QUARTZ : Condenser)

Output quality would depend on the quality of the boiler feed inlet water & other environmental factors.

Model	GI-2SQ	GI-2DQ	GI-4SQ	GI-4DQ	GI-8SQ	GI-8DQ
Output ltr/hr	2 Single Distilled	2 Double Distilled	4 Single Distilled	4 Doble Distilled	8 Single Distilled	8 Double Distilled
