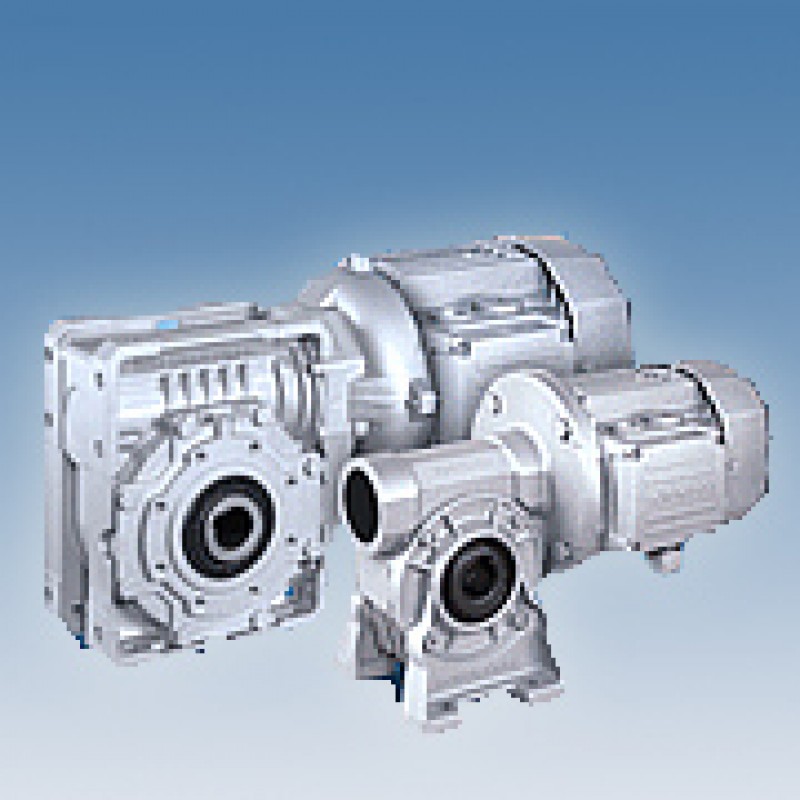

Worm Gears

Worm Gears

Product Details :

Offering a unique range of Worm Gears. Our worm gears are milestones for the industry worldwide. We offer choices in terms of mounting options, shaft pattern and motor interface. We have its variants in helical worm and double worm, and these differ with or without torque limiter.


Technical specifications of worm gears are as mentioned below:

  • Torque Range: 13 Nm, 7.100 Nm
  • Mechanical Rating (n1= 1400 min-1):0, 04, 75 kW
  • Gear ratios: 7, 10000


Output Configurations:

  • Keyed Hollow Shaft
  • Plug-in Solid Output Shaft
  • Torque Limiter as an Option


Input Configurations:

  • VF and W: IEC-standard motor adapter
  • VF and W: solid input shaft
  • W: integral gearmotor


Applicable AC motors:

  • VF and W: IEC-standard motors and brake motors - BN series
  • W: compact motors series M
  • Single and dual speed motors


Main Brake Features:

  • DC and AC supply
  • Faster Brake Engage/Disengage through Electronically
  • Controlled AC/DC Rectifier type SB, NBR, SBR (options)


Main Motor Options:

  • Thermistors and Thermostats sensor
  • Separate Supply Forced Ventilation
  • Line Driver and Push-Pull Incremental Encoder


VF and W Series of our products differ in their torque measurements:


TypeTorque Nm
VF 2713
VF 3024
VF 4455
VF 4988
W 63190
W 75320
W 86440
W 110830
VF 130200
VF 1501.500
VF 1852.000
VF 2105.000
VF 2507.100
