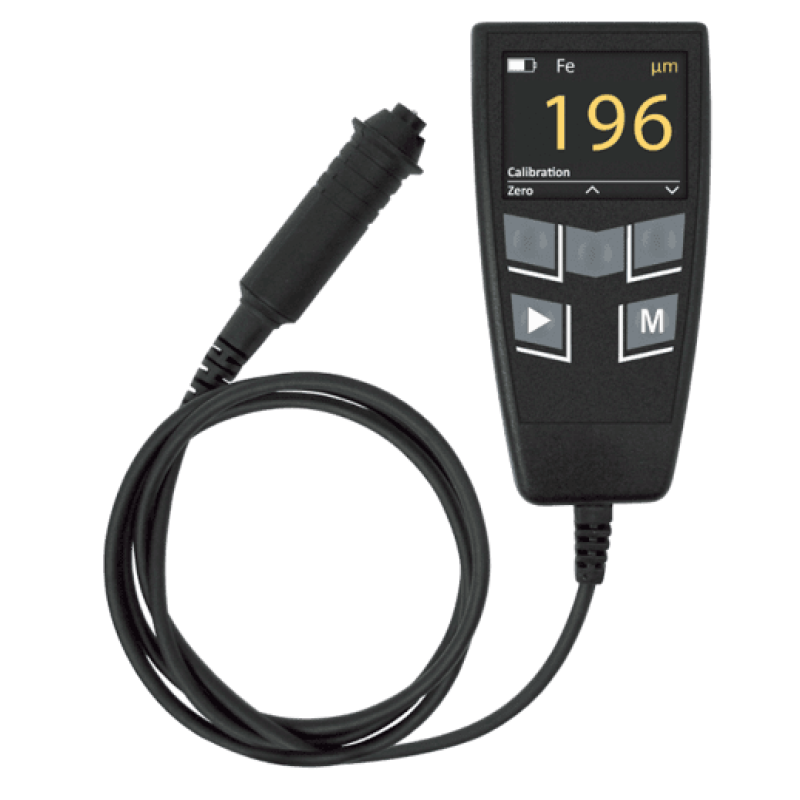

BASIC COATING THICKNESS GAUGE (MK4-C)

Product Details :

BASIC COATING THICKNESS GAUGE (MK4-C)

Purpose

Small-sized device for operative coating thickness measurements of paint, lacquer, galvanic, powder bitumen and other coatings on substrates from ferrous and non-ferrous materials with increased temperature range.

Features

• colour OLED display with 1.7’’ diagonal, large digits on display.
• device can be delivered with integrated combined small-sized probe for measuring coating thickness on substrates from ferrous and non-ferrous materials.
• Increased temperature range up to -30°C
• Possibility of tolerance mode measurement, measuring with averaging.
• device can be delivered with integrated probe or with built-in probe on cable.

Basic technical characteristics

• Accuracy: in range T = 0…500 µm ±(0,02T+1) µm; in range T = 500…Tmax ±0,02T µm.
• Temperature range: for device: -30 °C…+40 °C; for probe: -40 °C…+ 50 °C.
• Power-supply: built-in Li-Ion rechargeable battery, 3,7 – 4,2 V, 700 mAh.
• overall dimensions: 120 × 45 × 20 mm.
• weight: 130 g.
• operating time: min 8.
